Removal and Installation

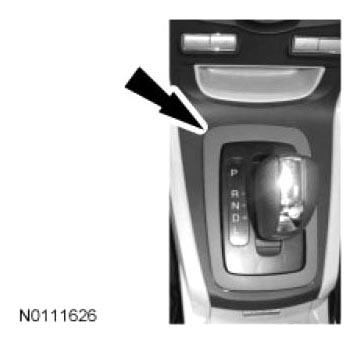

- On vehicles equipped with automatic transmission, remove the selector lever trim ring using a non-marring tool.
- Using a non-marring tool, lift the corners of the instrument panel lower finish panel upward to release the retaining clips.
- Disconnect the electrical connectors.
- To install, reverse the removal procedure.
- Make sure to align the finish panel retaining clips to the adjacent retaining clip holes.
NOTE:
To avoid damage to the lower finish panel, remove any retaining clips from the instrument panel and attach them to the lower finish panel before installing.
