Variable Camshaft Timing 12 (VCT12) Solenoid Connector End View (C1369)

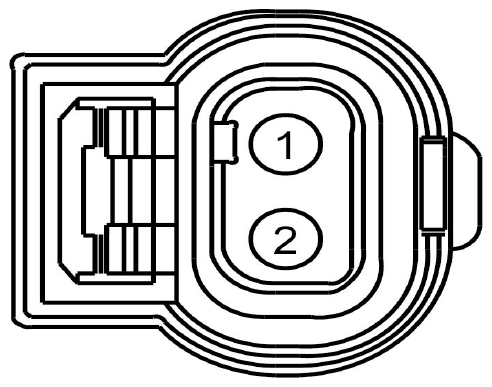

Fig 1: Identifying Variable Camshaft Timing 12 Solenoid Connector End View (C1369)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 67 OR CIRCUIT BREAKER (VPWR)
2	CE422 (WH-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 12 (VCT12)

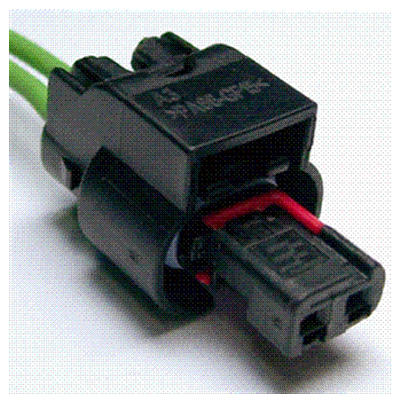

Available Pigtail Kits
Pigtail Kit Part Number WPT-1251	Service Part Number: CU2Z-14S411-DA  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Solenoid - Engine Variable Timing
