Turbocharger Bypass Valve (TCBY) Connector End View (C1650)

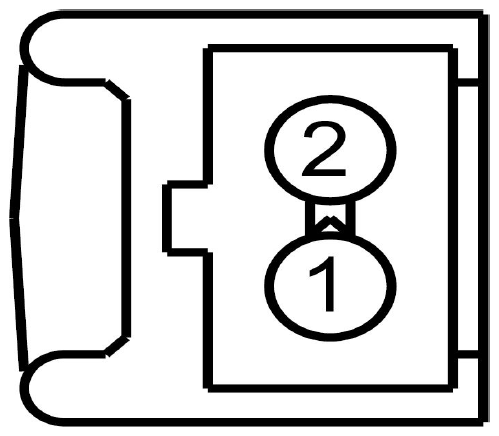

Fig 1: Identifying Turbocharger Bypass Valve Connector End View (C1650)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE836 (VT-GN)	20	SENSOR - TURBOCHARGER BYPASS VALVE (TCBY)
2	CBK03 (GY)	20	FUSE - 70 OR CIRCUIT BREAKER (VPWR)

Available Pigtail Kits

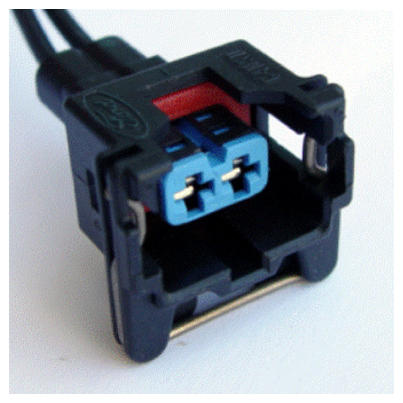

Pigtail Kit Part Number WPT-552	Service Part Number: 3U2Z-14S411-GLA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Actuator - Turbocharger Waste Gate Fuel Injector Sensor - Cam Shaft Position Sensor - Crank Shaft Position

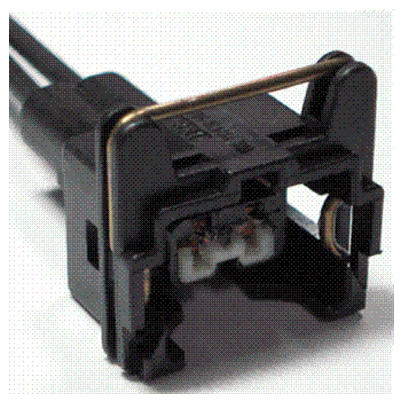

Pigtail Kit Part Number WPT-531	Service Part Number: 3U2Z-14S411-LEA  Gauge: 18  Pin material: Gold  Cavities: 2  Vehicle Uses Sensor - Cam Shaft Position Sensor - Crank Shaft Position

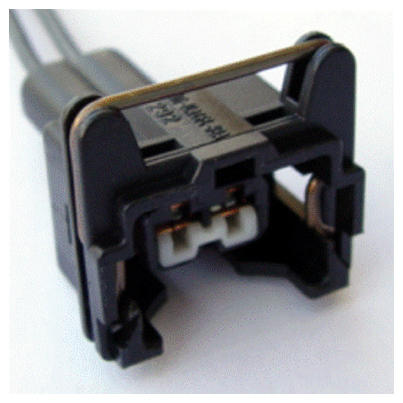

Pigtail Kit Part Number WPT-1054	Service Part Number: 3U2Z-14S411-GLB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Actuator - Turbocharger Waste Gate Fuel Injector Sensor - Cam Shaft Position Sensor - Crank Shaft Position Valve - Cold Start

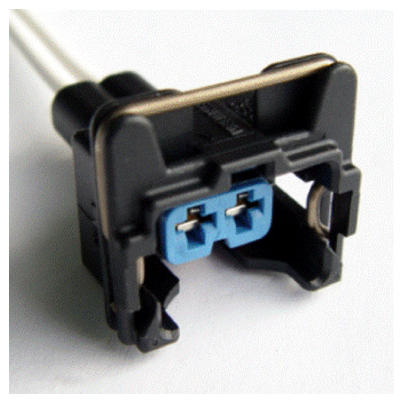

Pigtail Kit Part Number WPT-551	Service Part Number: 3U2Z-14S411-LPA  Gauge: 18  Pin material: Tin  Cavities: 2  Vehicle Uses Actuator - Turbocharger Waste Gate Lamp - Front Turn Sensor - Cam Shaft Position Sensor - Crank Shaft Position
