Cooling Fan
>>
3.5L/3.7L TIVCT 3.5L GTDI
3.5L/3.7L TIVCT 3.5L GTDI

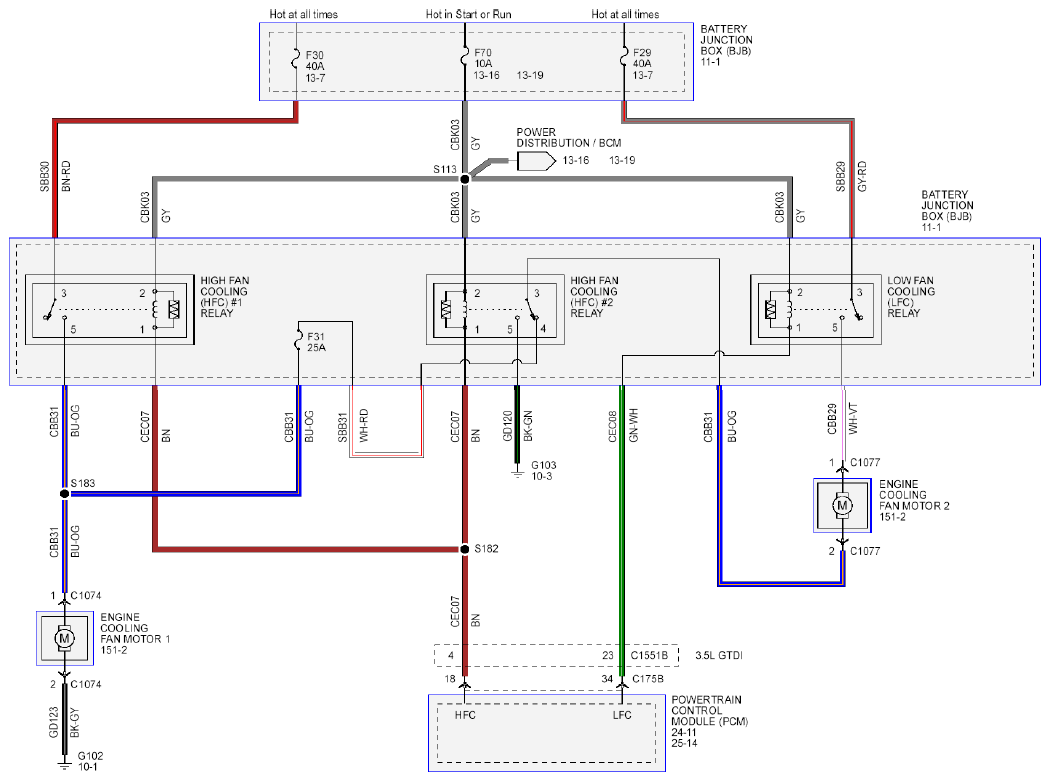

Fig 1: Cooling Fan - Wiring Diagram (3.5L/3.7L TIVCT 3.5L GTDI)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
