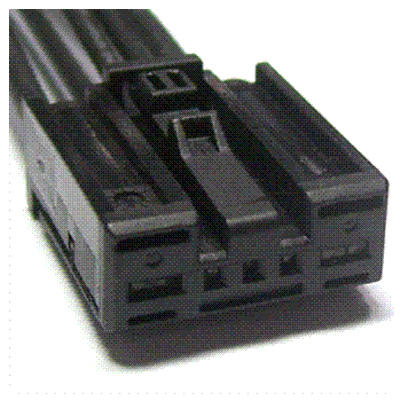

Passenger Seat Rear Height Motor Connector End View (C3075)

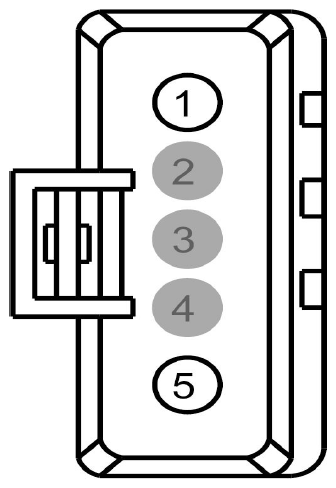

Fig 1: Identifying Passenger Seat Rear Height Motor Connector End View (C3075)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS37 (WH-BU)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT UP
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	CPS36 (YE-GY)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT DOWN

Available Pigtail Kits
Pigtail Kit Part Number WPT-1071	Service Part Number: AU2Z-14S411-PA  Gauge: 14 18  Pin material: Tin (greased)  Cavities: 5  Vehicle Uses Motor - Seat Height (Rear) Motor - Seat Recline
