Ford
>>
2013
>>
Explorer Police Interceptor, FWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Power Distribution/BCM
>>
F42, F43, F56, F57, F59, F60
F42, F43, F56, F57, F59, F60

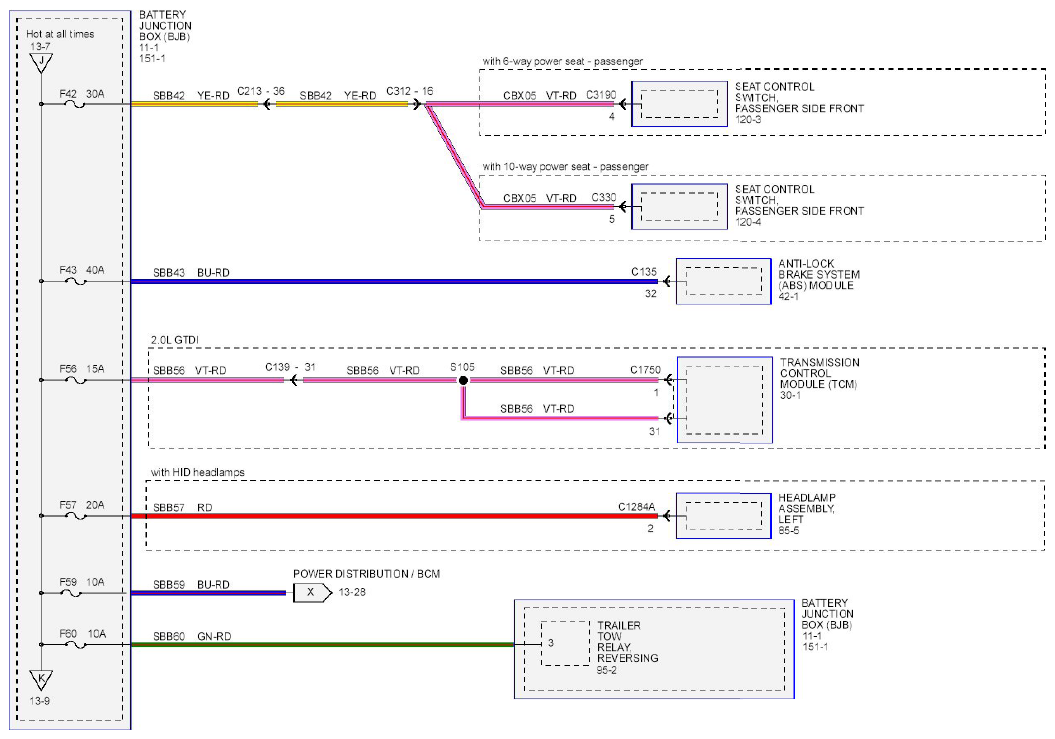

Fig 1: Power Distribution/BCM - Wiring Diagram - F42, F43, F56, F57, F59 And F60
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
