Top Finish Panel Lamp Connector End View (C3398)

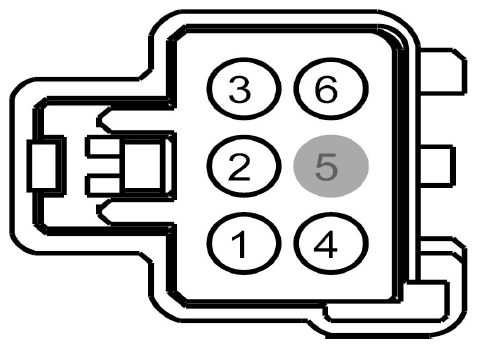

Fig 1: Identifying Top Finish Panel Lamp Connector End View (C3398)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VLN48 (YE-OG)	22	CTRL MOD. - AMBIENT LIGHTING # LED RED
2	VLN49 (YE-GN)	22	CTRL MOD. - AMBIENT LIGHTING # LED GREEN
3	VLN50 (YE-BU)	22	CTRL MOD. - AMBIENT LIGHTING # LED BLUE
4	GD233 (BK)	18	GROUND - COWL SIDE/PILLAR A LEFT	without ambient lighting
4	RLN44 (BN)	22	CTRL MOD. - AMBIENT LIGHTING # LED RETURN	with ambient lighting
5	*	*	Not Used
6	VLN04 (VT-GY)	18	CTRL MOD. - IP/SWITCH ILLUMINATION

Available Pigtail Kits

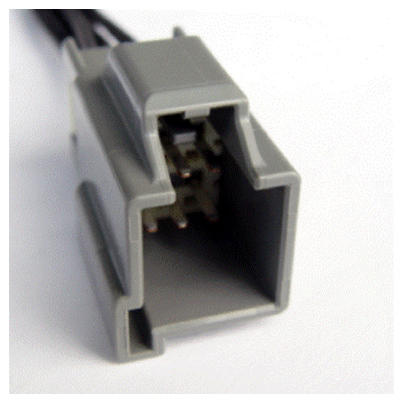

Pigtail Kit Part Number WPT-444	Service Part Number: 3U2Z-14S411-NBA  Gauge: 16  Pin material: Tin  Cavities: 6  Vehicle Uses Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - Park/Turn/Stop Lamp - Park/Turn/Stop/Reverse - Inline (Male) Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction

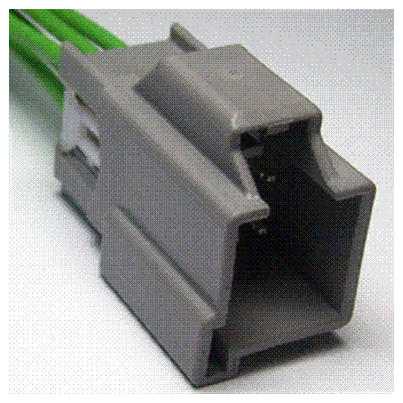

Pigtail Kit Part Number WPT-1299	Service Part Number: 3U2Z-14S411-NBB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Connector - Inline Element - Heated Seat Inverter - DC to AC Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - License Lamp - Park/Turn/Stop Lamp - Top Finish Panel Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction
