High Current Battery Junction Box (BJB) Connector End View (C1617B)

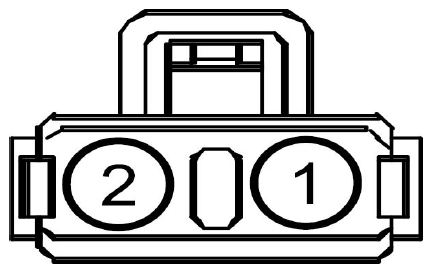

Fig 1: Identifying High Current Battery Junction Box Connector End View (C1617B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBF16 (RD)	6	FUSE - B (HIGH CURRENT BATTERY JUNCTION BOX)
2	*	*	Not Used
