Safety Belt Anchor PRETENSIONER, Driver Connector End View (C3065)

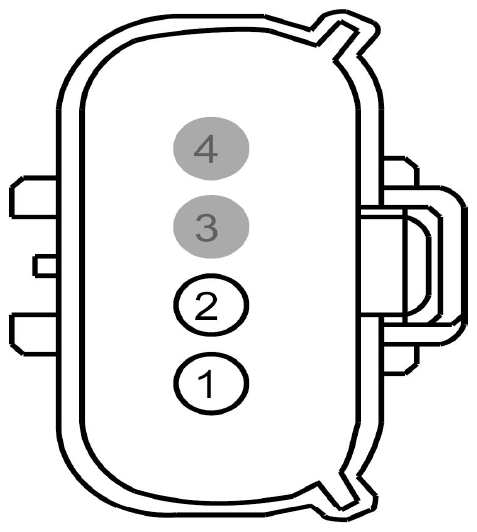

Fig 1: Identifying Driver Safety Belt Anchor Pretensioner Connector End View (C3065)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RR170 (BN-BU)	18	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) -
2	CR170 (GN)	18	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) +
3	*	*	Not Used
4	*	*	Not Used

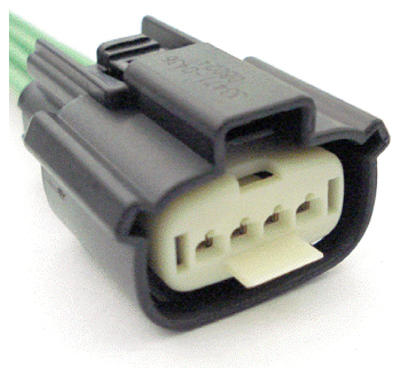

Available Pigtail Kits
Pigtail Kit Part Number WPT-940	Service Part Number: 9U2Z-14S411-MA  Gauge: 14  Pin material: Silver  Cavities: 4  Vehicle Uses Pretensioner - Seat Belt (Passenger)
