Turbocharger (TC) WASTEGATE Regulating Valve Solenoid Connector End View (C1246)

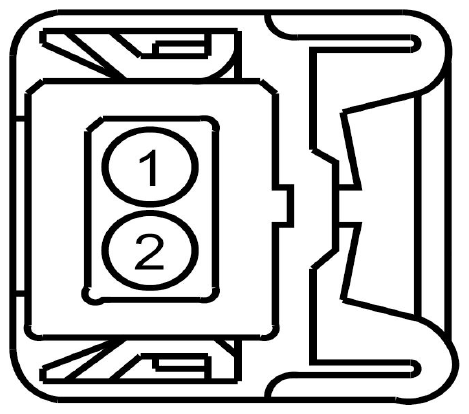

Fig 1: Identifying Turbocharger Wastegate Regulating Valve Solenoid Connector End View (C1246)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE824 (YE-GN)	20	CTRL MOD. - POWERTRAIN # TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID (TCWRVS)
2	CBK03 (GY)	20	FUSE - 70 OR CIRCUIT BREAKER (VPWR)

Available Pigtail Kits

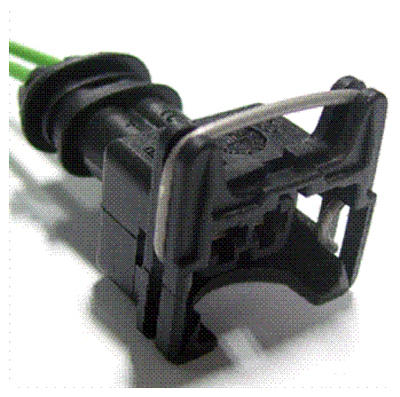

Pigtail Kit Part Number WPT-1107	Service Part Number: AU2Z-14S411-BEA  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Actuator - Turbocharger Waste Gate Solenoid - EGR Cooler Bypass
