Brake Vacuum Pump - 1.6L GTDI: Removal

NOTE: Removal steps in this procedure may contain installation details.

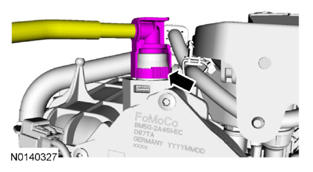

Remove the air cleaner outlet pipe. Refer to INTAKE AIR DISTRIBUTION & FILTERING .

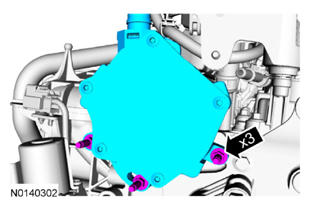

- To install, tighten to 10 Nm (89 lb-in).

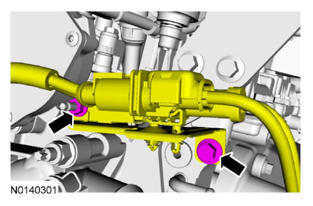

- To install, tighten to 10 Nm (89 lb-in).

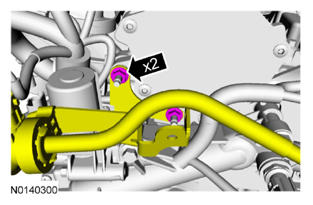

- To install, tighten to 10 Nm (89 lb-in).

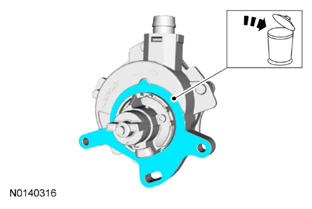

NOTE: Make sure the mating surfaces are clean and free of foreign material.

Discard the specified component. Follow local disposal regulations.
