Brake Vacuum Pump - 1.6L GTDI: Installation

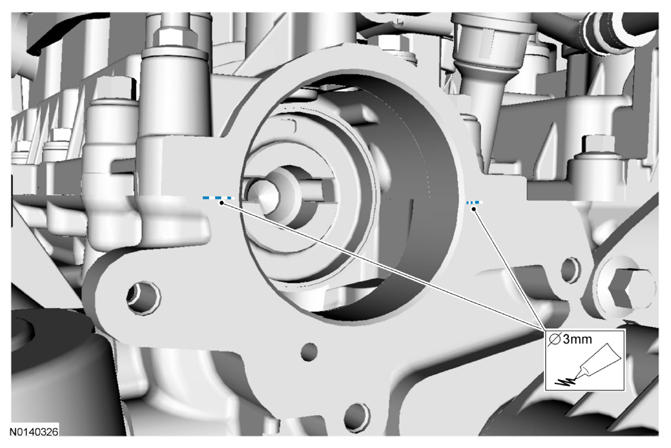

  1. Apply a continuous bead of the specified diameter from the specified tube.
    G08617180
  2. NOTE: Align the camshaft and vacuum pump couplings correctly or damage to the camshaft or vacuum pump may occur.

    To install, reverse the removal procedure.
