Removal And Installation: Turbocharger: Installation

NOTE: Make sure 4 new turbocharger-to-cylinder head studs, 4 new turbocharger nuts and a new turbocharger gasket are installed.

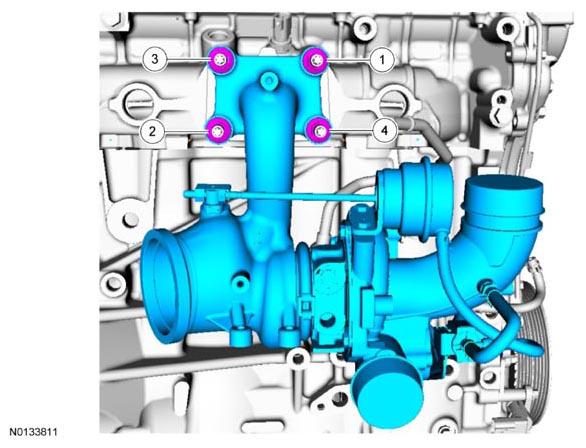

Tighten in the sequence shown in illustration to 50 Nm (37 lb-ft).
To install, reverse the removal procedure.
