With Front Parking Aid And Active Park Assist

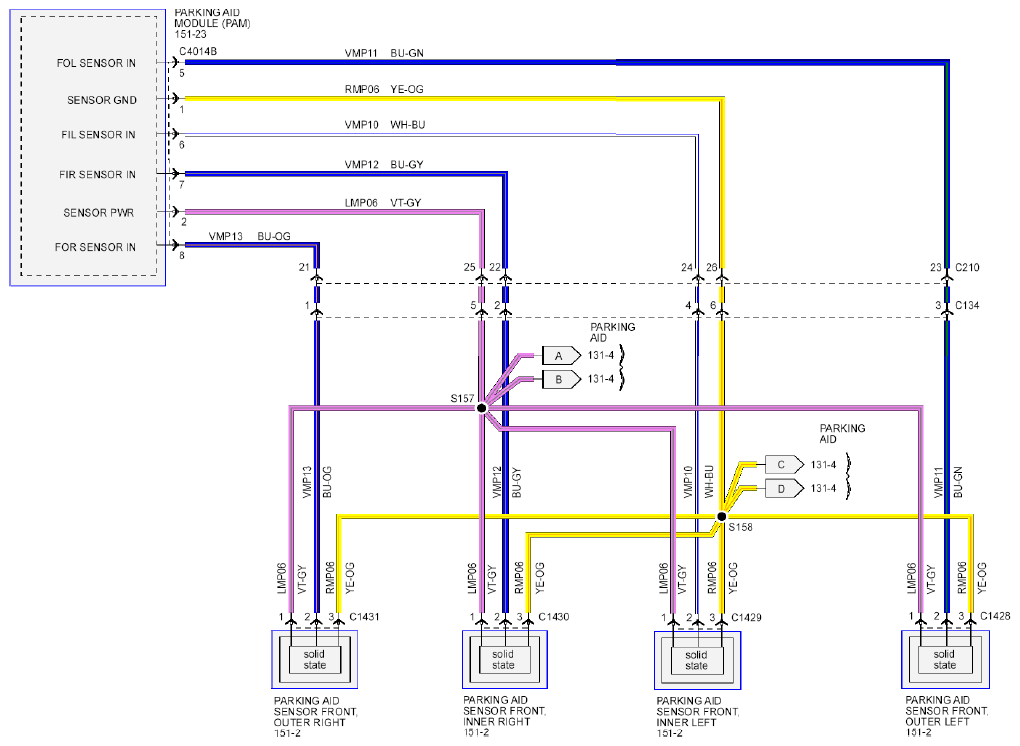

Fig 1: Parking Aid Circuit Diagram - With Front Parking Aid And Active Park Assist (1 Of 2)
G08741813Courtesy of FORD MOTOR CO.

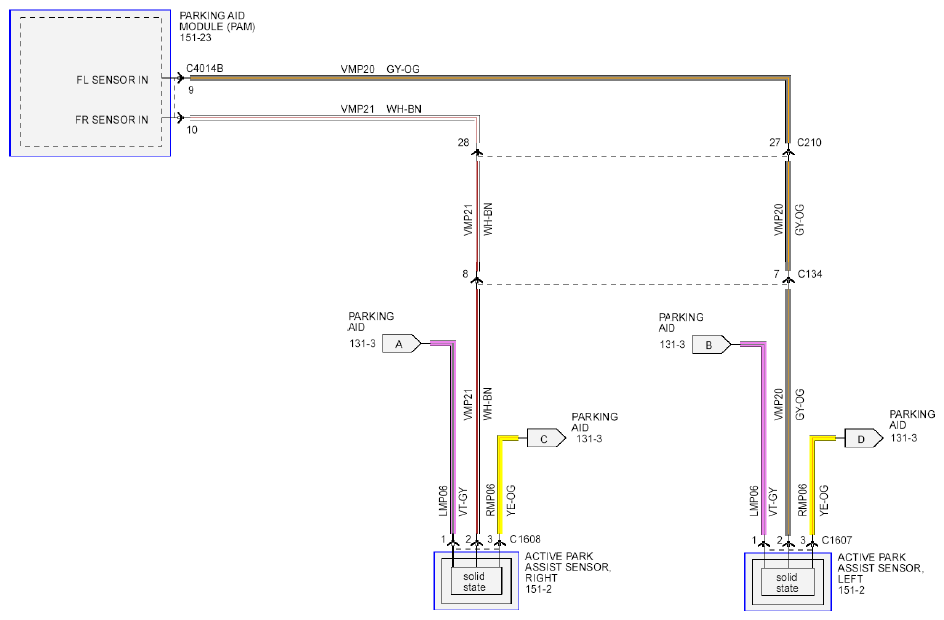

Fig 2: Parking Aid Circuit Diagram - With Front Parking Aid And Active Park Assist (2 Of 2)
G08741814Courtesy of FORD MOTOR CO.
