G100, G101, G102, G105, G106, G108, G109, G112

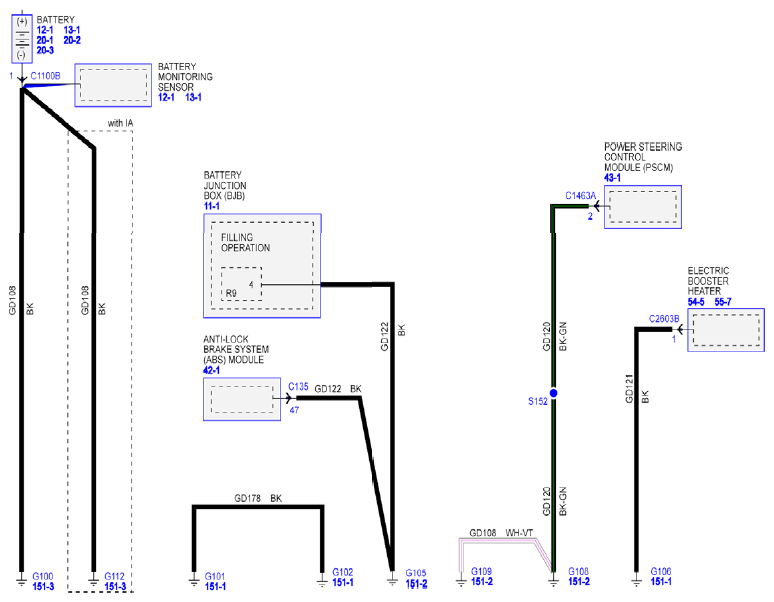

Fig 1: Ground Circuit Diagram - G100, G101, G102, G105, G106, G108, G109 And G112

G08741530

Courtesy of FORD MOTOR CO.
