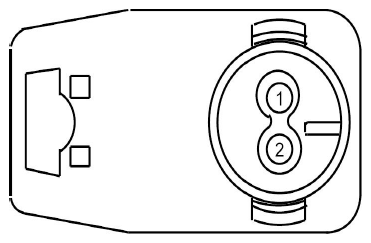

Safety Belt Retractor PRETENSIONER, Passenger Connector End View (C303)

Fig 1: Identifying Safety Belt Retractor Pretensioner, Passenger Connector (C303)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR122 (WH-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD +
2	RR122 (BN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD -

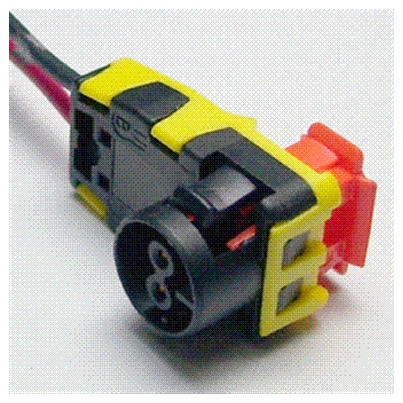

Available Pigtail Kits
Pigtail Kit Part Number WPT-1225	Service Part Number: BU2Z-14S411-BHA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Airbag - Side Curtain Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger)
