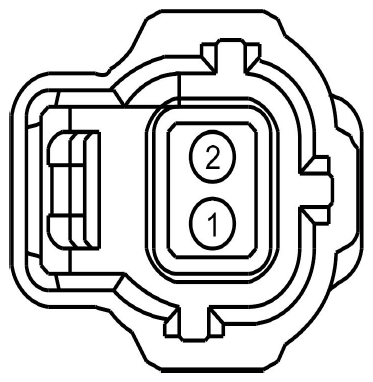

Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C377)

Fig 1: Identifying Evaporative Emission (EVAP) Canister Vent Valve Connector (C377)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB33 (WH-BN)	20	FUSE OR CIRCUIT BREAKER
2	CE114 (GN-BU)	20	CTRL MOD. - POWERTRAIN # EVAPORATIVE EMISSION (EVAP) CANISTER VENT VALVE (CANV)

Available Pigtail Kits

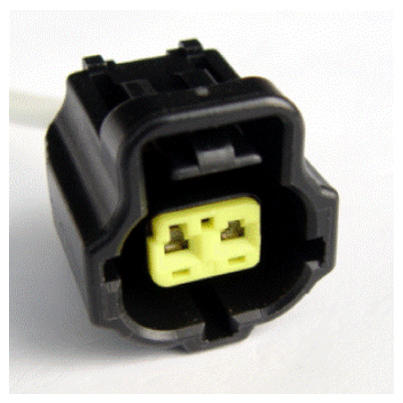

Pigtail Kit Part Number WPT-420	Service Part Number: 3U2Z-14S411-JUA  Gauge: 18  Pin material: Gold  Cavities: 2  Vehicle Uses Sensor - Air Charge Temperature Sensor - Brake Pressure

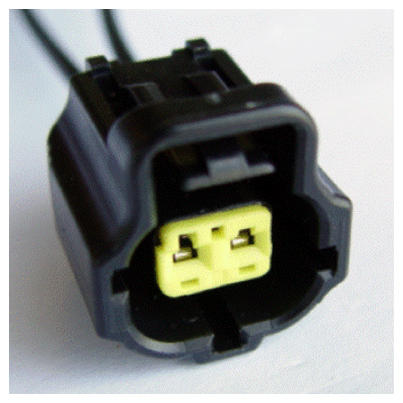

Pigtail Kit Part Number WPT-322	Service Part Number: 3U2Z-14S411-JZA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Resistor - Daytime Running Lamp (DRL) Sensor - Air Charge Temperature Sensor - Brake Pressure Solenoid - Canister Vent Switch - Brake Pressure
