Safety Belt Anchor PRETENSIONER, Passenger Connector End View (C3066)

Fig 1: Identifying Safety Belt Anchor Pretensioner, Passenger Connector (C3066)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR171 (VT-GN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) +
2	RR171 (GY)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) -

Available Pigtail Kits

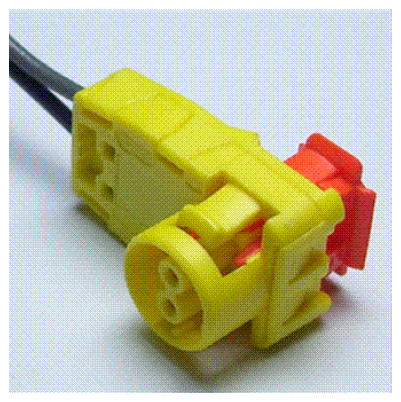

Pigtail Kit Part Number WPT-1227	Service Part Number: BU2Z-14S411-BKA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger)
