Evaporative Emission (EVAP) Canister Purge Valve Connector End View (C123)

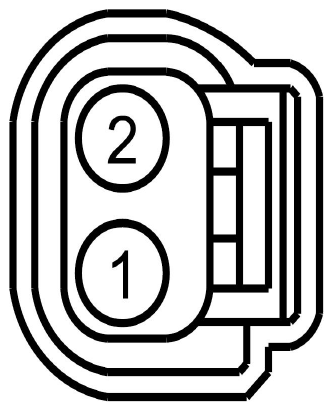

Fig 1: Identifying Evaporative Emission (EVAP) Canister Purge Valve Connector (C123)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE113 (WH-BN)	18	CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)	2.3L
2	CBK02 (GN)	18	FUSE OR CIRCUIT BREAKER	2.3L

Available Pigtail Kits

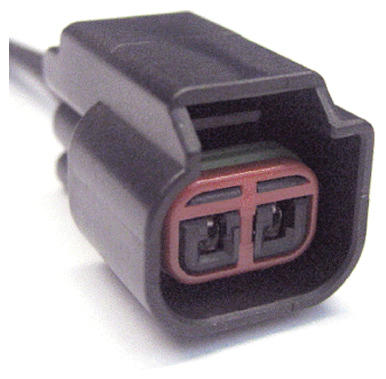

Pigtail Kit Part Number WPT-905	Service Part Number: 8U2Z-14S411-EA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Relay - Daytime Running Lamp (DRL) Switch - Heater/A/C Blower (Front)
