Subwoofer Connector End View (C4212)

Fig 1: Identifying Subwoofer Connector (C4212)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME01 (GN-VT)	18	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 +
2	RME01 (GY)	18	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 -
3	VME72 (WH)	18	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 +
4	RME72 (BU-GN)	18	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 -

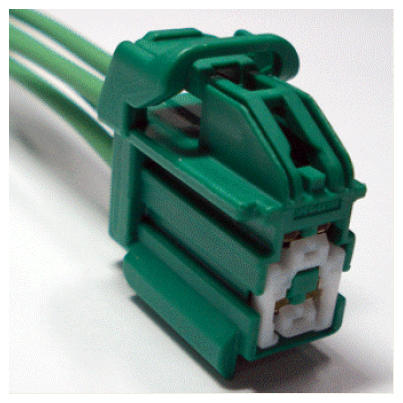

Available Pigtail Kits
Pigtail Kit Part Number WPT-1016	Service Part Number: 3U2Z-14S411-FFB  Gauge: 14  Pin material: Silver  Cavities: 4  Vehicle Uses Motor - Steering Column Adjust Speaker - Subwoofer Transceiver - Passive Anti-Theft (PATS)
