Passive Start Antenna, Rear Connector End View (C4378)

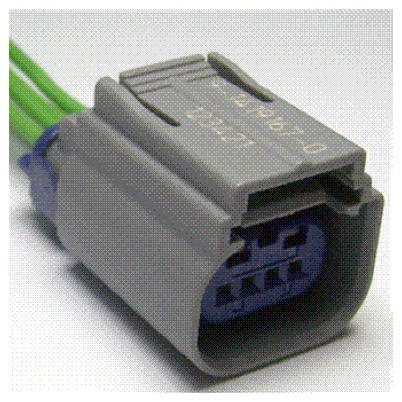

Fig 1: Identifying Passive Start Antenna, Rear Connector (C4378)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK08 (WH-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR +
2	RPK08 (GN-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR -
3	*	*	Not Used
4	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-1328	Service Part Number: DU2Z-14S411-AA  Gauge: 20  Pin material: Silver  Cavities: 4  Vehicle Uses Antenna - Keyless Entry Lamp - Charge Port
