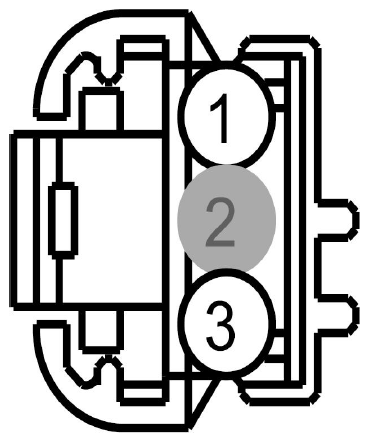

Luggage Compartment Lamp, Right Connector End View (C4403)

Fig 1: Identifying Luggage Compartment Lamp, Right Connector (C4403)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP60 (YE-VT)	22	FUSE OR CIRCUIT BREAKER
1	CBP60 (YE-VT)	20	FUSE OR CIRCUIT BREAKER	with door modules
2	*	*	Not Used
3	VLN33 (GY-VT)	20	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)

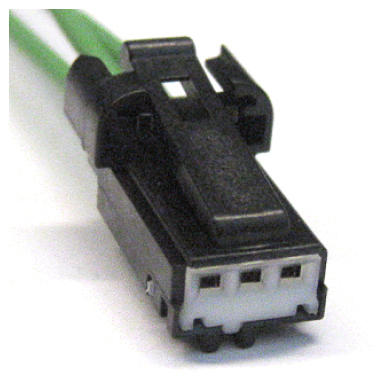

Available Pigtail Kits
Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
