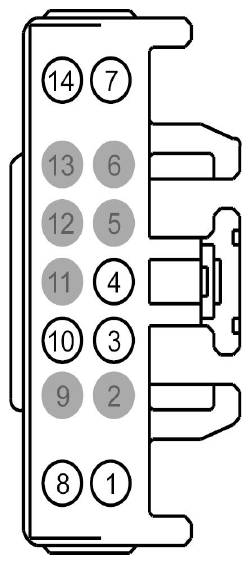

Liftgate/Trunk Module (LTM) Connector End View (C4174A)

Fig 1: Identifying Liftgate/Trunk Module (LTM) Connector (C4174A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBR25 (RD)	12	FUSE OR CIRCUIT BREAKER
2	*	*	Not Used
3	CPR57 (GN-WH)	14	CTRL MOD. - POWER LIFTGATE # OPEN
4	DPR57 (*)	18	SHIELD
5	*	*	Not Used
6	*	*	Not Used
7	CPR61 (BN)	18	CTRL MOD. - POWER LIFTGATE # CINCH +
8	GD150 (BK-WH)	12	GROUND - PILLAR D RIGHT # 2ND POINT (6L2T)
9	*	*	Not Used
10	CPR58 (GNOG)	14	CTRL MOD. - POWER LIFTGATE # CLOSE
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	CPR62 (WH-BU)	18	CTRL MOD. - POWER LIFTGATE # UNCINCH

Available Pigtail Kits

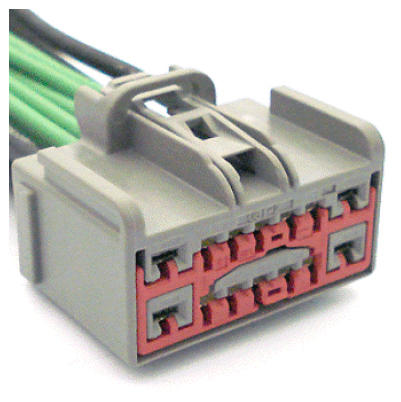

Pigtail Kit Part Number WPT-741	Service Part Number: 3U2Z-14S411-BJAA  Gauge: 12 16  Pin material: Tin  Cavities: 14  Vehicle Uses Cigar Lighter Motor - Heater/AC Blower (Front)

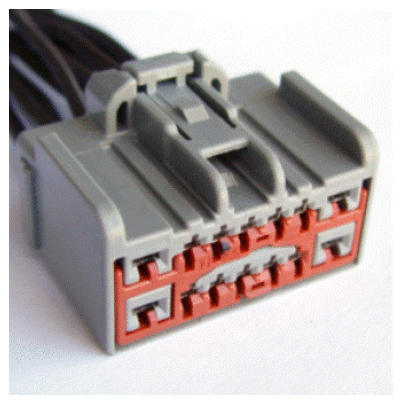

Pigtail Kit Part Number WPT-955	Service Part Number: 3U2Z-14S411-BJAC  Gauge: 12 14 16  Pin material: Tin & Silver  Cavities: 14  Vehicle Uses Connector - Inline
