Universal Heated Oxygen Sensor (Ho2S) #11 Connector End View (C1571)

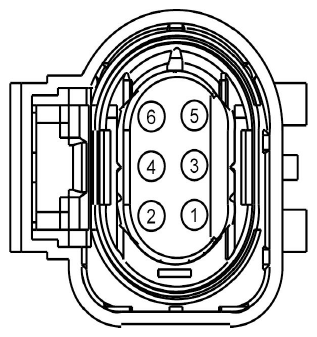

Fig 1: Identifying Universal Heated Oxygen Sensor (HO2S) #11 Connector (C1571)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE448 (GY-BU)	18	CTRL MOD. - POWERTRAIN # (UO2SPC11)	1.6L
1	LE451 (BN-YE)	20	CTRL MOD. - POWERTRAIN # (UO2SPC11)	2.0L
2	LE448 (GY-BU)	20	CTRL MOD. - POWERTRAIN # (UO2SGREF11)	2.0L
2	LE451 (BN-YE)	18	CTRL MOD. - POWERTRAIN # (UO2SGREF11)	1.6L
3	CE235 (GN-BN)	18	CTRL MOD. - POWERTRAIN # (UO2SHTR11)	2.0L
3	VE827 (GN-WH)	18	CTRL MOD. - POWERTRAIN # (UO2SHTR11)	1.6L
4	CBB33 (WH-BN)	18	FUSE OR CIRCUIT BREAKER	1.6L
4	CBK02 (GN)	16	FUSE OR CIRCUIT BREAKER	2.0L
5	LE452 (GN)	20	CTRL MOD. - POWERTRAIN # (UO2SPCT11)	2.0L
5	VE826 (BN-VT)	18	CTRL MOD. - POWERTRAIN # (UO2SPCT11)	1.6L
6	LE452 (GN)	18	SENSOR - (UO2S11)	1.6L
6	VE826 (BN-VT)	20	SENSOR - (UO2S11)	2.0L
