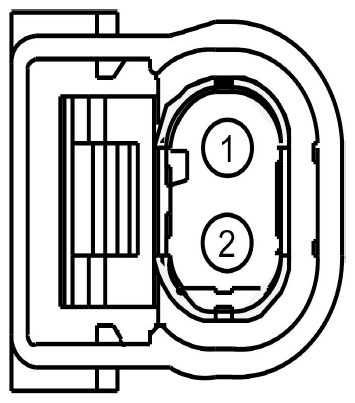

Turbocharger (TC) WASTEGATE Regulating Valve Solenoid Connector End View (C1672)

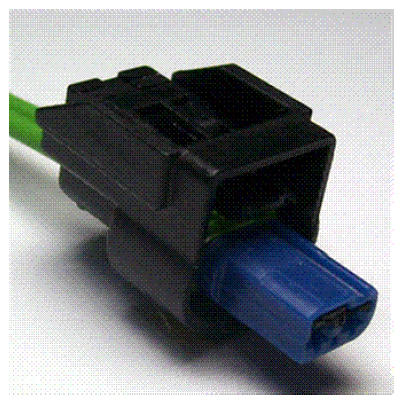

Fig 1: Identifying Turbocharger (TC) Wastegate Regulating Valve Solenoid Connector (C1672)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB34 (VT-BN)	18	FUSE OR CIRCUIT BREAKER
2	CE178 (WH-OG)	18	SENSOR - WASTEGATE POSITION (TCWRVS)

Available Pigtail Kits
Pigtail Kit Part Number WPT-1275	Service Part Number: CU2Z-14S411-AKA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Actuator - Turbocharger Waste Gate
