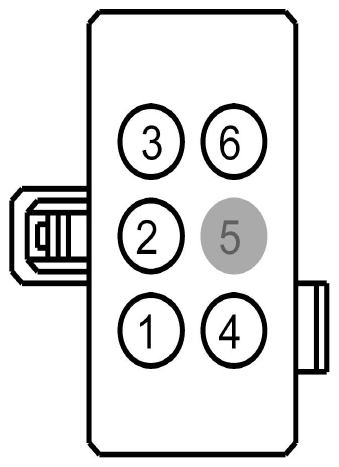

Temperature Blend Door Actuator, RH Side Connector End View (C2092)

Fig 1: Identifying Temperature Blend Door Actuator, RH Side Connector (C2092)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CH212 (BU-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1/CLOSE (IF PLUS)
2	CH211 (YE)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COMMON
3	CH213 (BN-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2/OPEN (IF PLUS)
4	CH214 (GY-VT)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 3
5	*	*	Not Used
6	CH215 (VT)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 4

Available Pigtail Kits

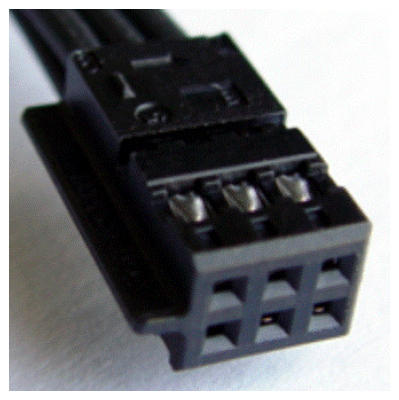

Pigtail Kit Part Number WPT-276	Service Part Number: 3U2Z-14S411-HDA  Gauge: 18  Pin material: Tin  Cavities: 6  Vehicle Uses Clock Switch - Deck Lid/Hatch Release Switch - Deck Lid/Lift Gate Ajar Switch - Message Center Switch - Moon Roof/Sun Roof

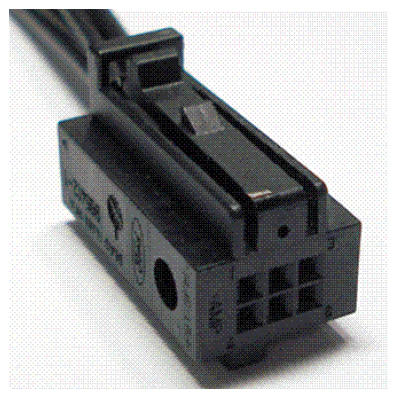

Pigtail Kit Part Number WPT-1060	Service Part Number: 3U2Z-14S411-HDB  Gauge: 18  Pin material: Tin (greased)  Cavities: 6  Vehicle Uses Clock Switch - Deck Lid/Hatch Release Switch - Message Center Switch - Moon Roof/Sun Roof
