Air Inlet Mode Door Actuator Connector End View (C282)

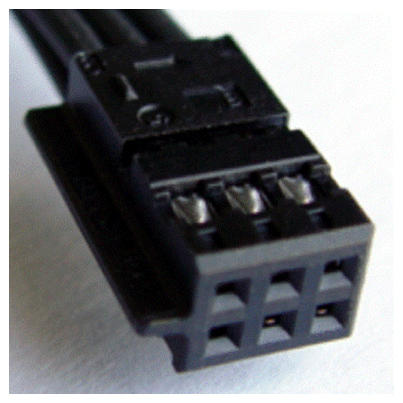

Fig 1: Identifying Air Inlet Mode Door Actuator Connector (C282)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CH207 (BU-GY)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1/CLOSE (IF PLUS)
2	CH206 (YE-VT)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COMMON
3	CH208 (GN-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2/OPEN (IF PLUS)
4	CH209 (BN-YE)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 3
5	*	*	Not Used
6	CH210 (VT-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 4

Available Pigtail Kits
Pigtail Kit Part Number WPT-276	Service Part Number: 3U2Z-14S411-HDA  Gauge: 18  Pin material: Tin  Cavities: 6  Vehicle Uses Clock Switch - Deck Lid/Hatch Release Switch - Deck Lid/Lift Gate Ajar Switch - Message Center Switch - Moon Roof/Sun Roof
Pigtail Kit Part Number WPT-1060	Service Part Number: 3U2Z-14S411-HDB  Gauge: 18  Pin material: Tin (greased)  Cavities: 6  Vehicle Uses Clock Switch - Deck Lid/Hatch Release Switch - Message Center Switch - Moon Roof/Sun Roof
