F7, F8, F15, F17, F18, F21, F24, F48

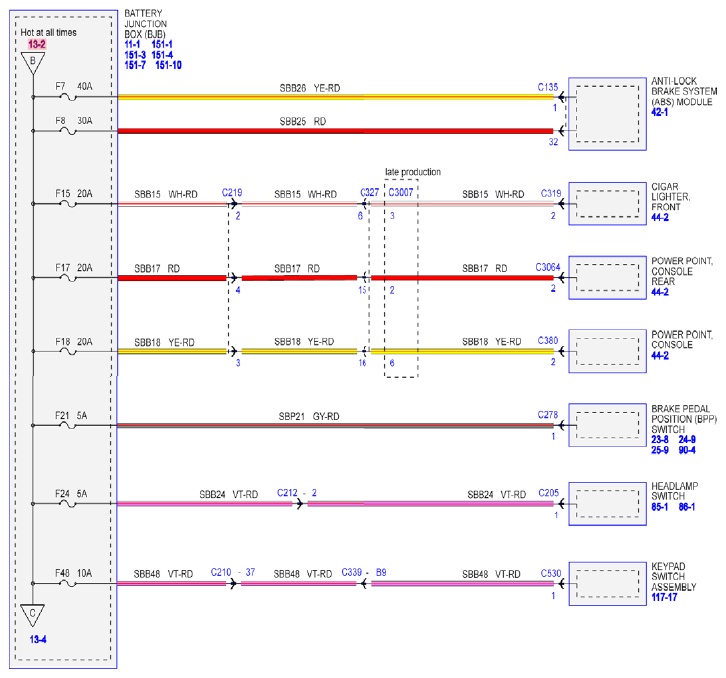

Fig 1: Power Distribution/BCM Circuit Diagram - F7, F8, F15, F17, F18, F21, F24 And F48

G08741558

Courtesy of FORD MOTOR CO.
