F37, F39, F40, F41, F42, F43, F44, F45

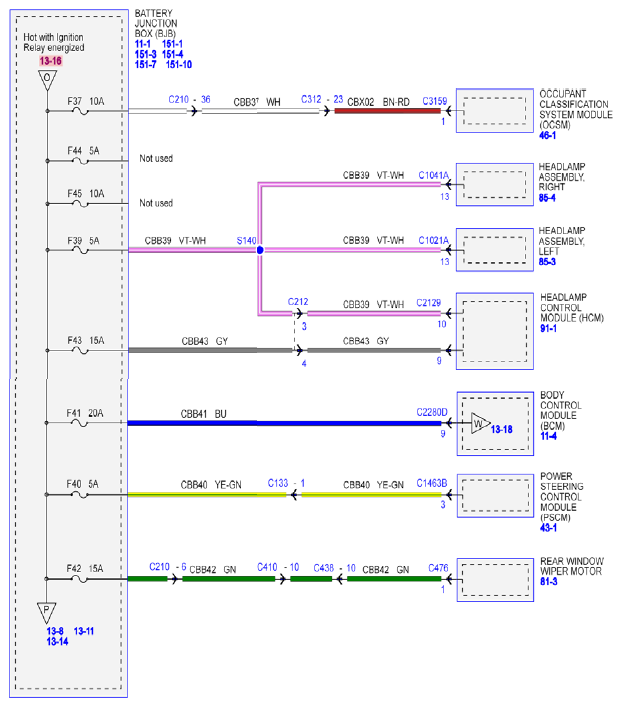

Fig 1: Power Distribution/BCM Circuit Diagram - F37, F39, F40, F41, F42, F43, F44 And F45

G08741572

Courtesy of FORD MOTOR CO.
