Escape Titanium, AWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Power Distribution BCM
>>
1.6L; F12, F26, F32, F36
1.6L; F12, F26, F32, F36

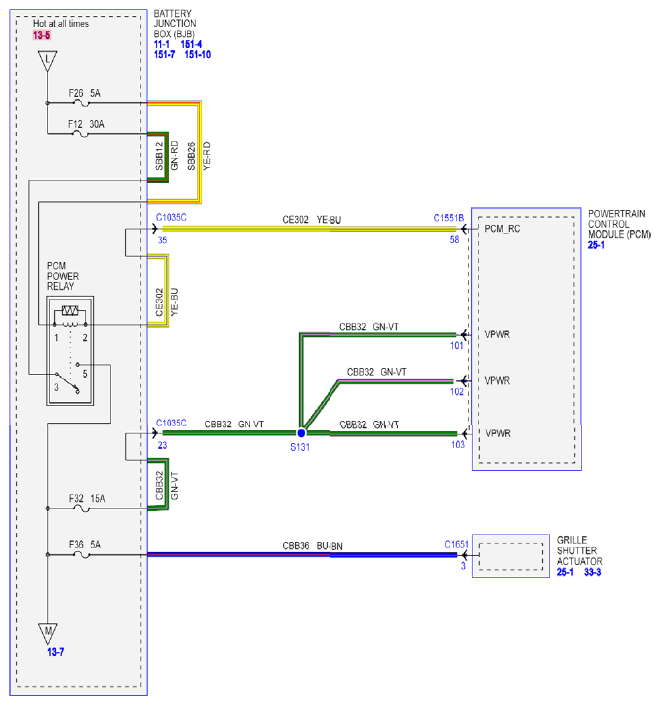

Fig 1: Power Distribution/BCM Circuit Diagram - 1.6L; F12, F26, F32 And F36
Courtesy of FORD MOTOR CO.
