Parking, Rear and License Lamps: Notes

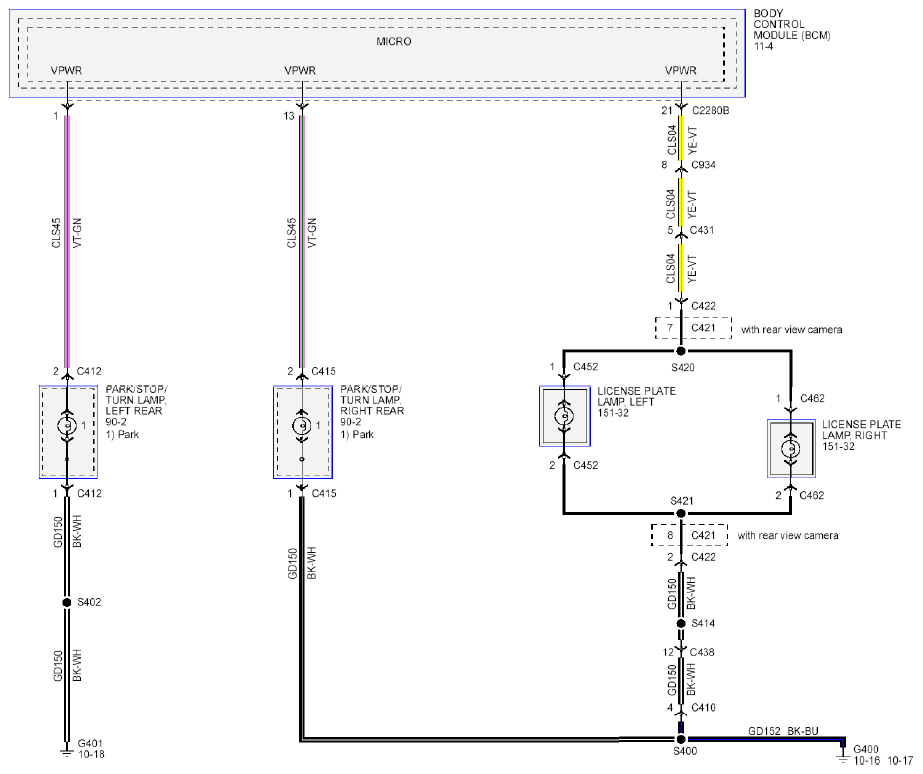

Fig 1: Parking, Rear And License Lamps Circuit Diagram

G08741718

Courtesy of FORD MOTOR CO.
