Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Interior Lamps
>>
Without Roof Opening Panel
Without Roof Opening Panel

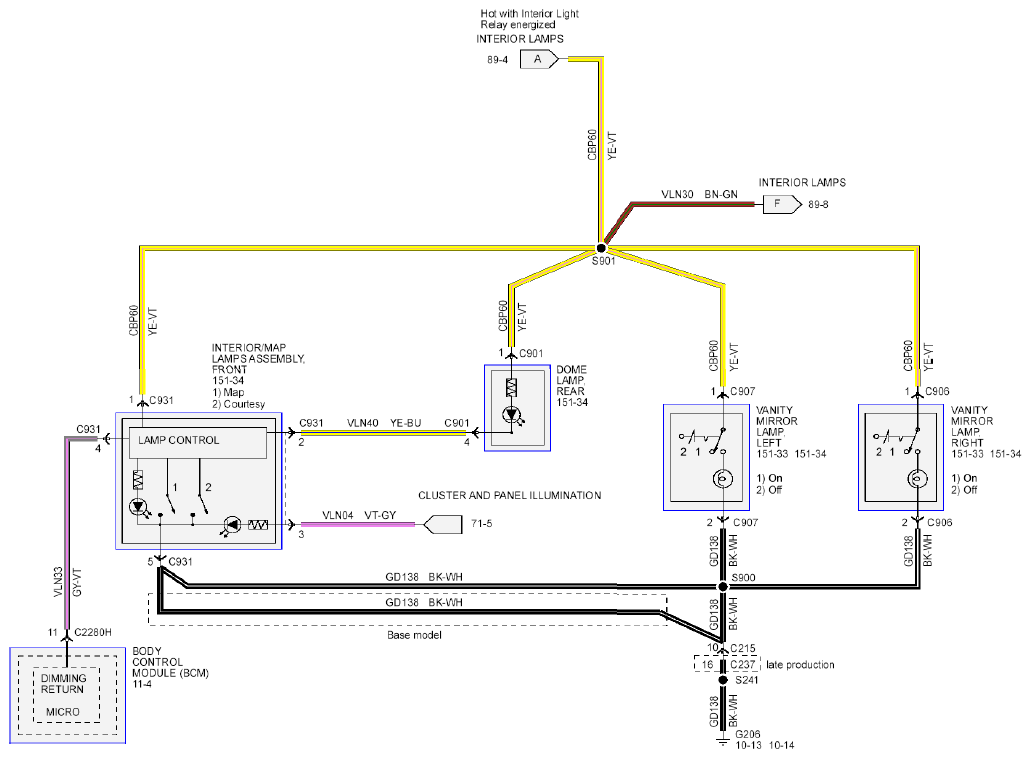

Fig 1: Interior Lamps Circuit Diagram - Without Roof Opening Panel
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
