With Roof Opening Panel

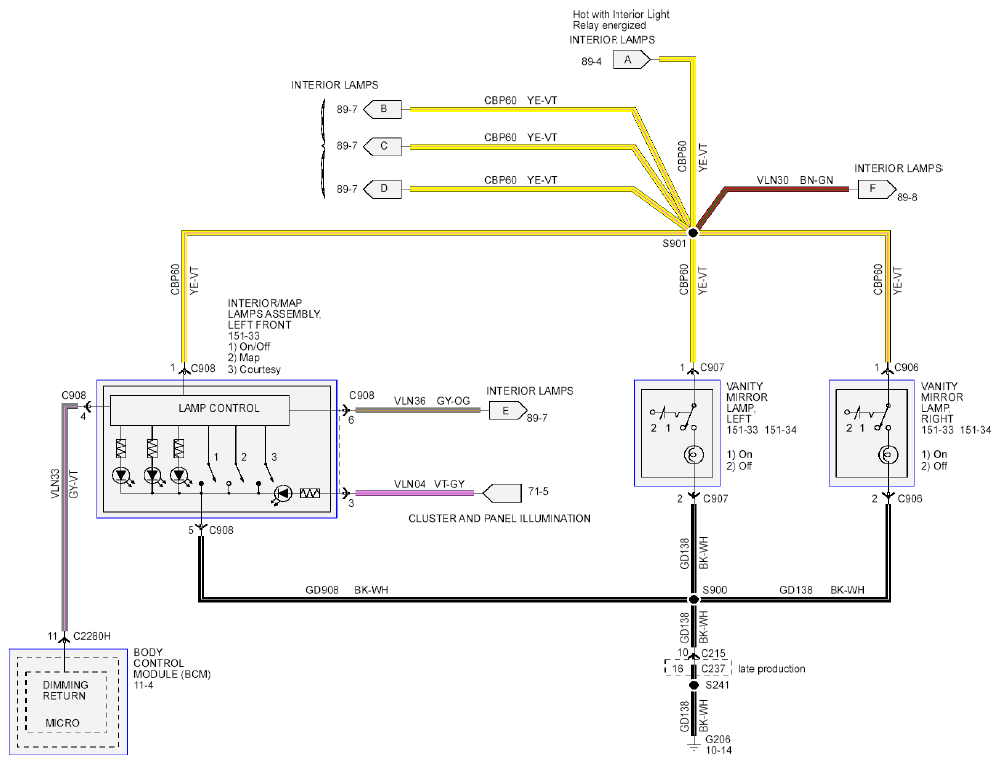

Fig 1: Interior Lamps Circuit Diagram - With Roof Opening Panel (1 Of 2)
G08741707Courtesy of FORD MOTOR CO.

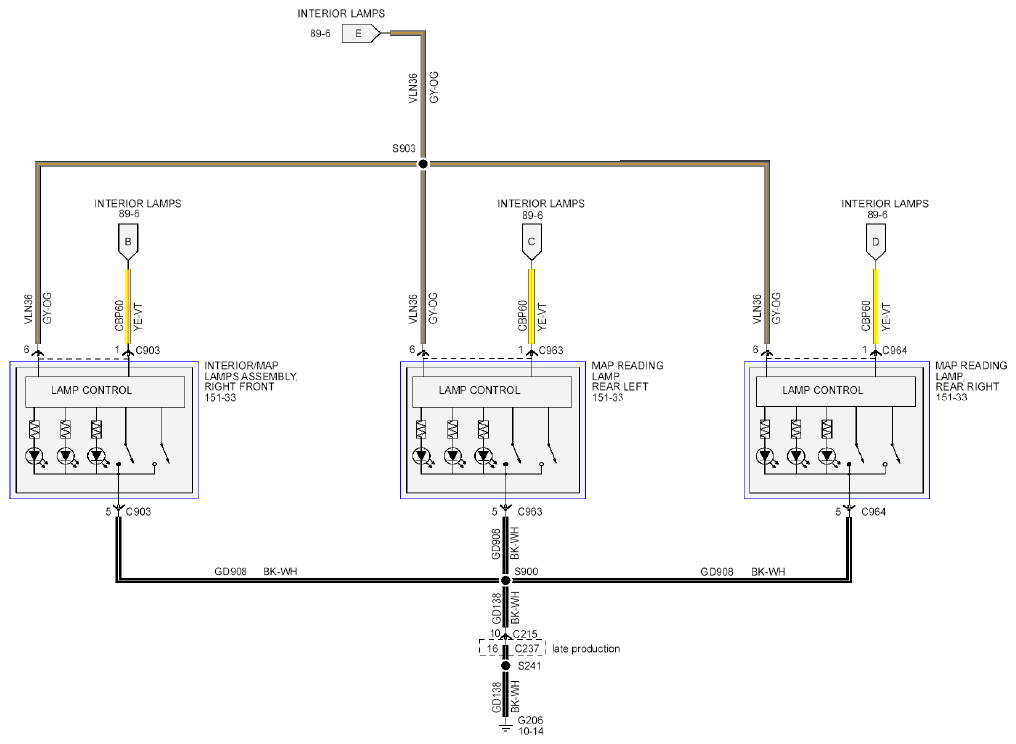

Fig 2: Interior Lamps Circuit Diagram - With Roof Opening Panel (2 Of 2)
G08741708Courtesy of FORD MOTOR CO.
