Escape Titanium, AWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Horn/Cigar Lighter
>>
With 110V Power Inverter
With 110V Power Inverter

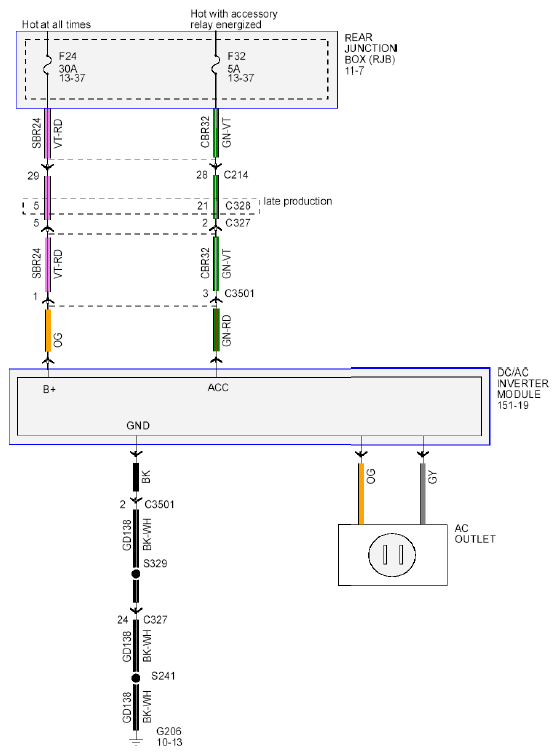

Fig 1: Horn/Cigar Lighter Circuit Diagram - With 110V Power Inverter
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
