Escape Titanium, AWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Headlamps
>>
Hid
OEM Wiring Diagrams: Headlamps: Hid

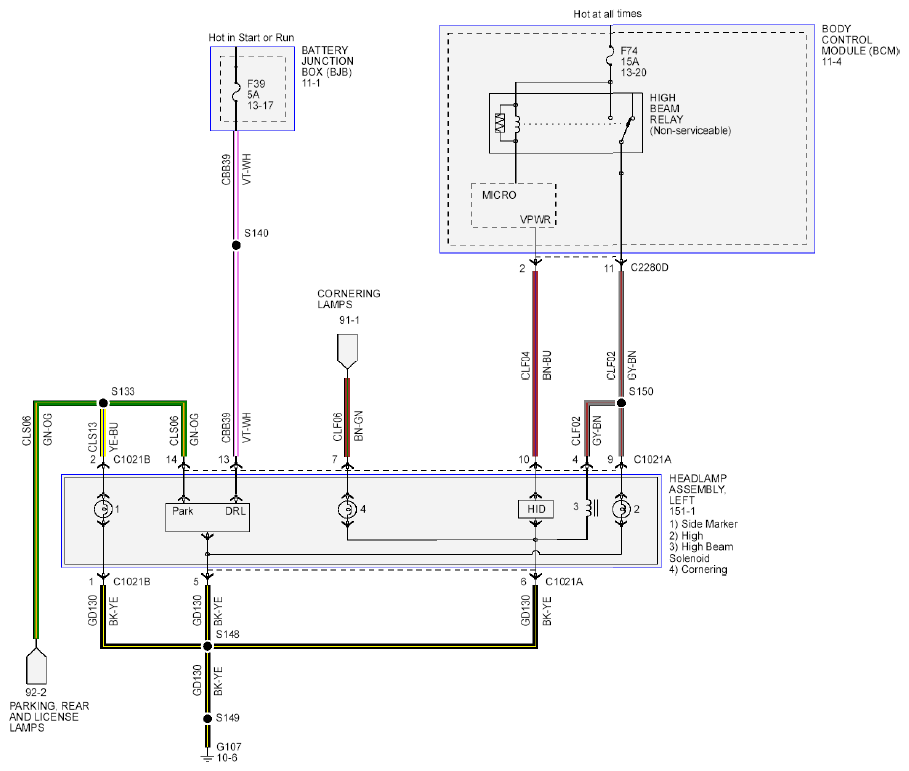

Fig 1: Headlamps Circuit Diagram - HID (1 Of 2)
Courtesy of FORD MOTOR CO.

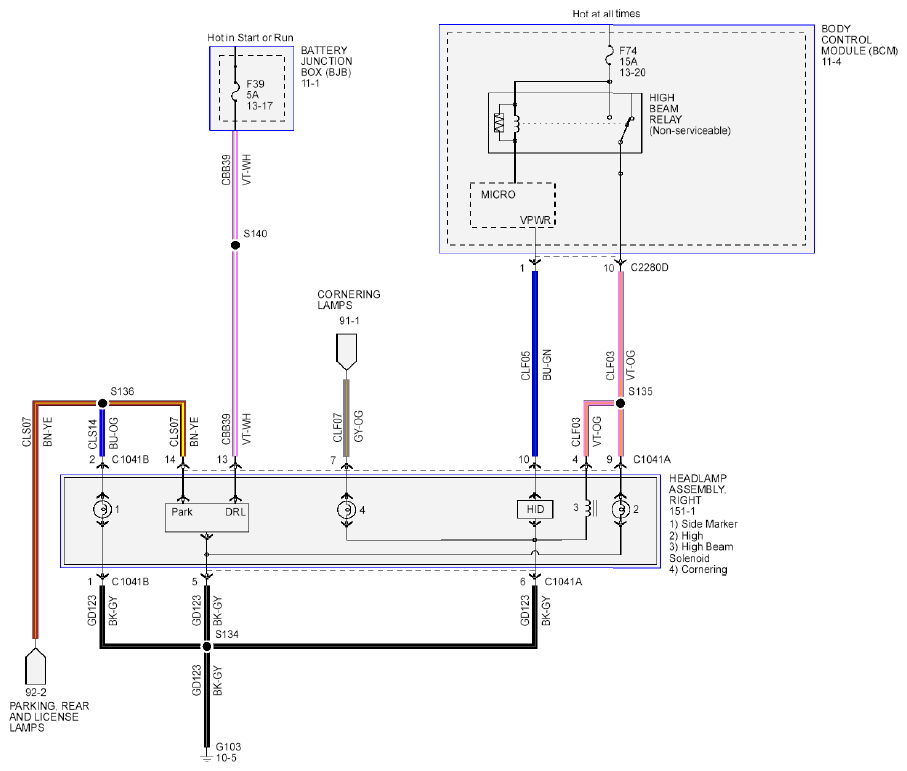

Fig 2: Headlamps Circuit Diagram - HID (2 Of 2)
Courtesy of FORD MOTOR CO.
