Cluster and Panel Illumination

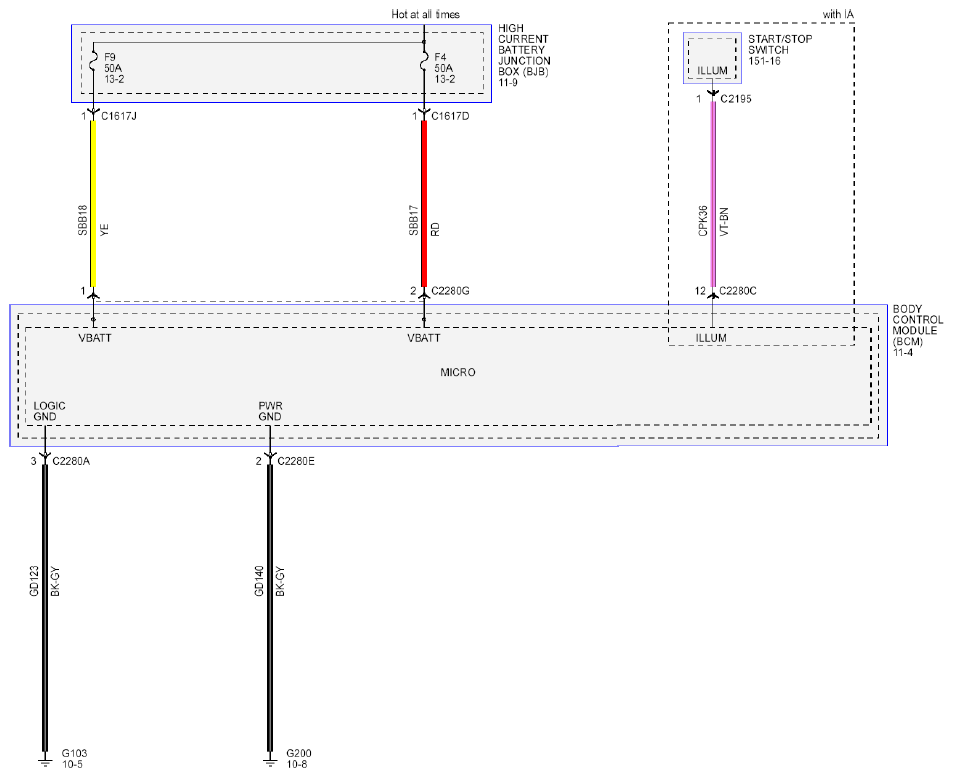

Fig 1: Cluster And Panel Illumination Circuit Diagram (1 Of 5)
G08741688Courtesy of FORD MOTOR CO.

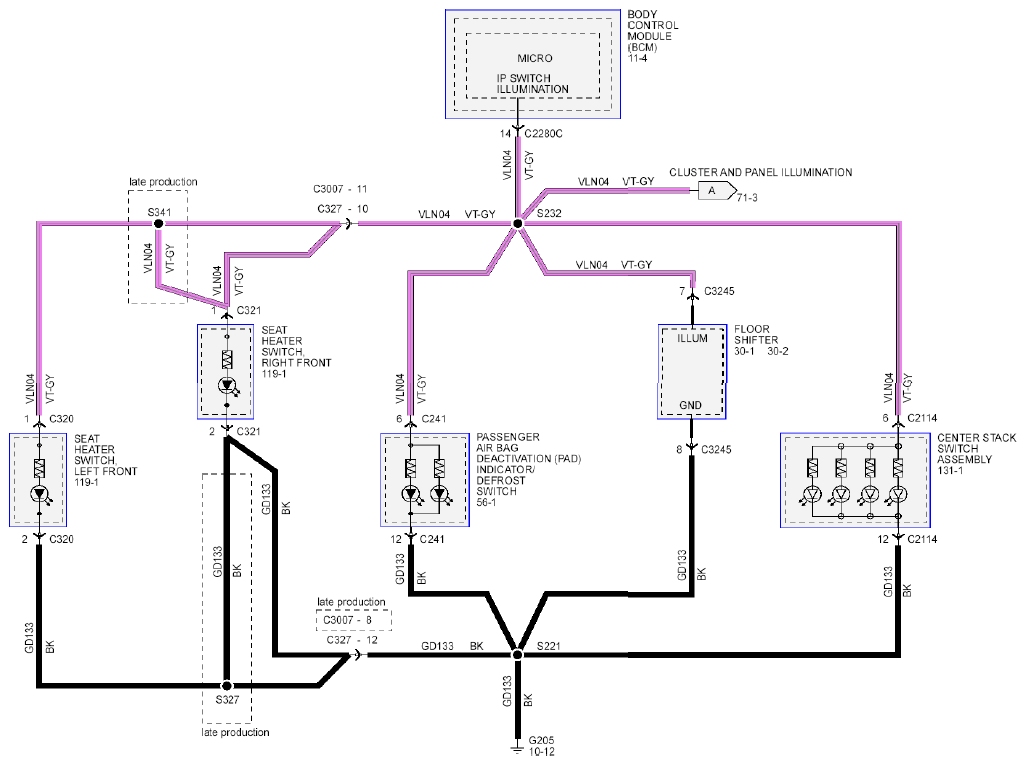

Fig 2: Cluster And Panel Illumination Circuit Diagram (2 Of 5)
G08741689Courtesy of FORD MOTOR CO.

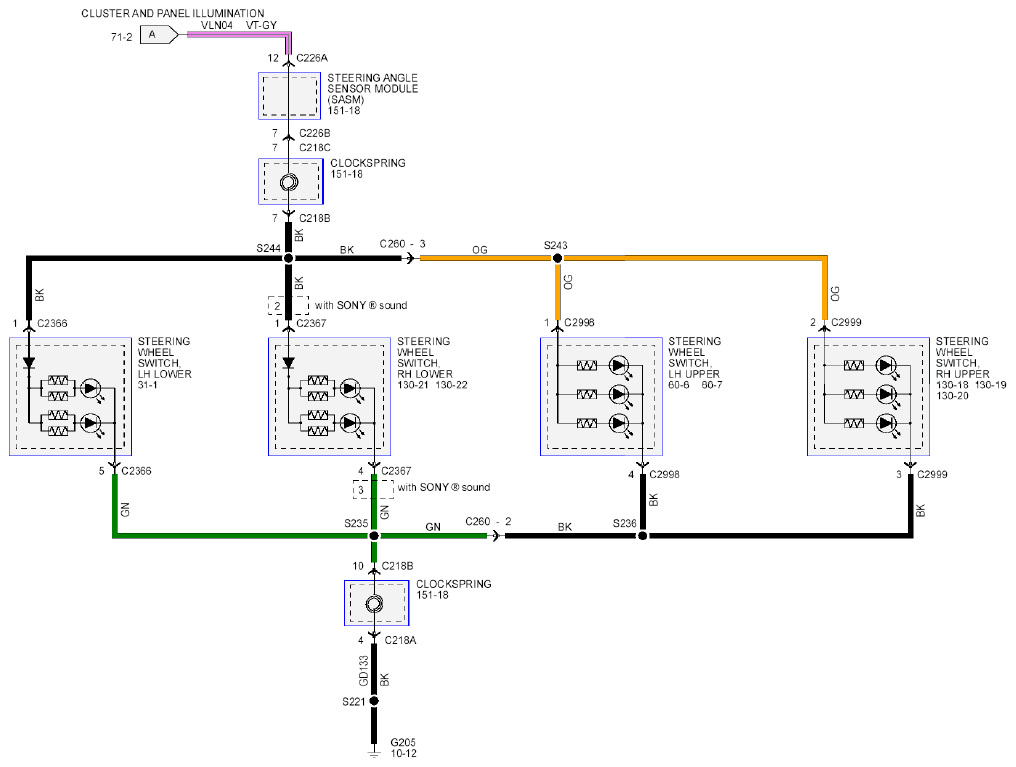

Fig 3: Cluster And Panel Illumination Circuit Diagram (3 Of 5)
G08741690Courtesy of FORD MOTOR CO.

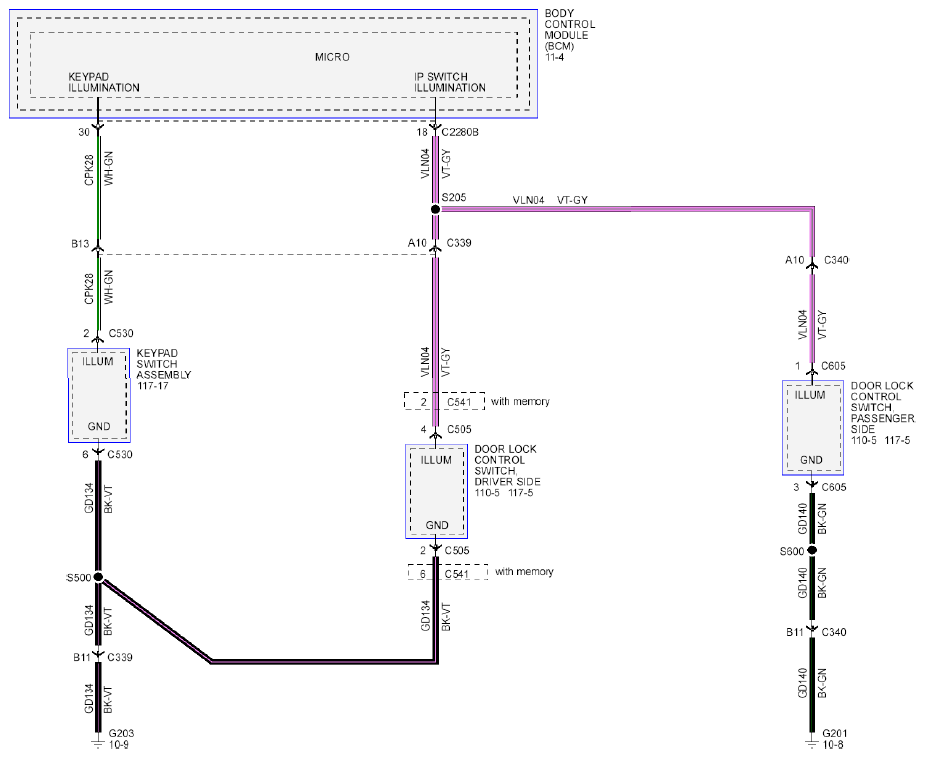

Fig 4: Cluster And Panel Illumination Circuit Diagram (4 Of 5)
G08741691Courtesy of FORD MOTOR CO.

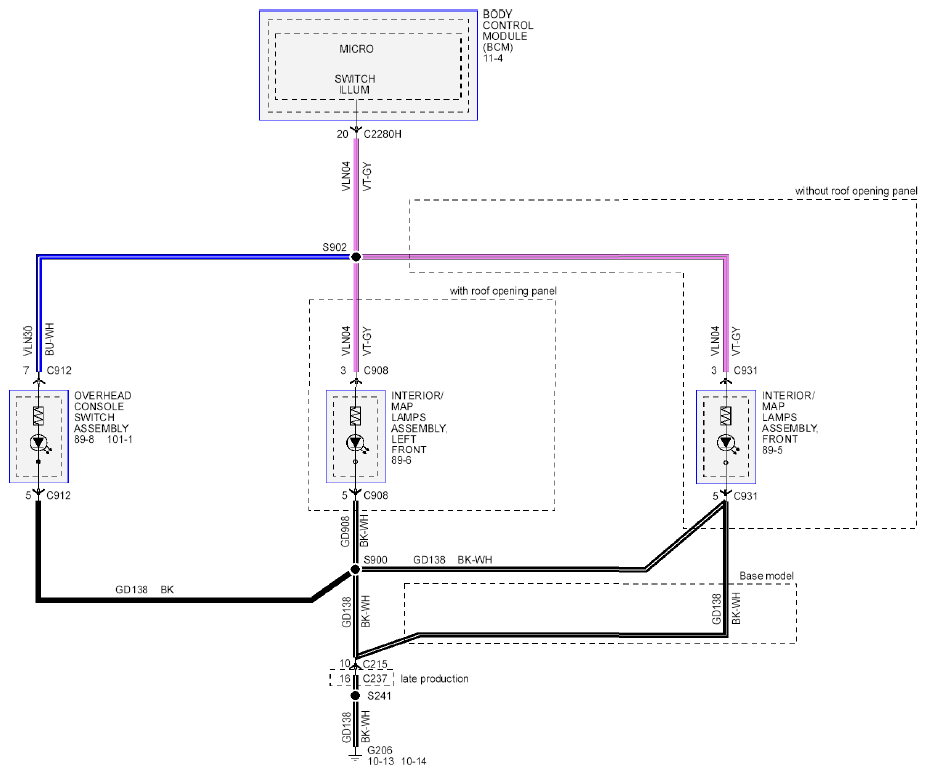

Fig 5: Cluster And Panel Illumination Circuit Diagram (5 Of 5)
G08741692Courtesy of FORD MOTOR CO.
