Turbocharger (TC) WASTEGATE Regulating Valve Solenoid Connector End View (C1246)

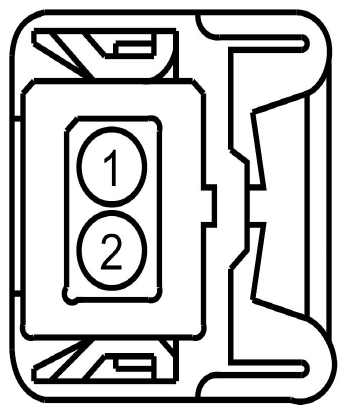

Fig 1: Identifying Turbocharger (TC) Wastegate Regulating Valve Solenoid Connector (C1246)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE824 (YE-GN)	20	SENSOR-TURBOCHARGERWASTEGATE REGULATING VALVE SOLENOID (TCWRVS)
2	CBK03 (GY)	20	FUSE OR CIRCUIT BREAKER

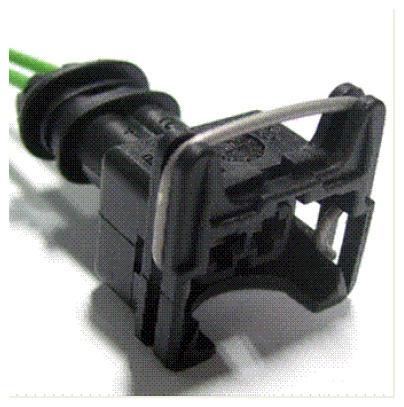

Available Pigtail Kits
Pigtail Kit Part Number WPT-1107	Service Part Number: AU2Z-14S411-BEA  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Actuator - Turbocharger Waste Gate Solenoid - EGR Cooler Bypass
