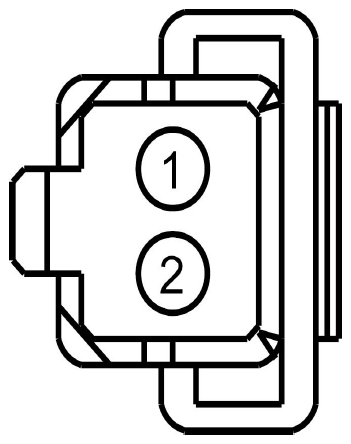

Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) Led, Right Connector End View (C676)
Fig 1: Identifying Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) Led, Right Connector (C676)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * (*) | * | SENSOR - ALERT | |
| 2 | * (*) | * | SENSOR RETURN |
| Available Pigtail Kits | |
|---|---|

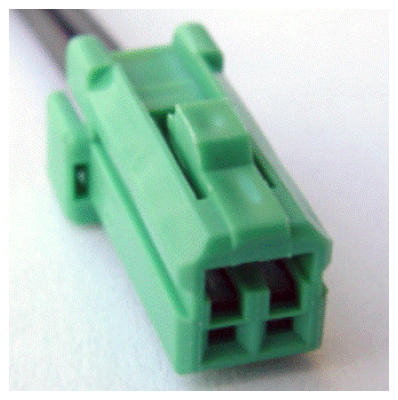

| Pigtail Kit Part Number WPT-1197 | Service Part Number: 3U2Z-14S411-PFB Gauge: 20 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|

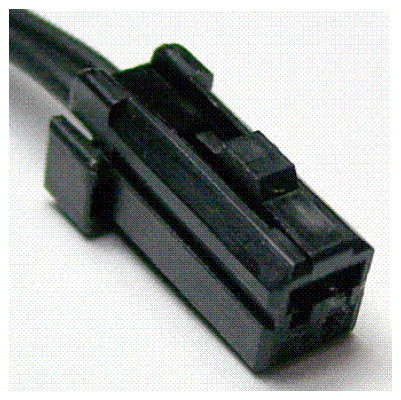

| Pigtail Kit Part Number WPT-479 | Service Part Number: 3U2Z-14S411-PFA Gauge: 20 Pin material: Tin Cavities: 2 Vehicle Uses
|
