Exterior Door Handle, Right Rear Connector End View (C831)

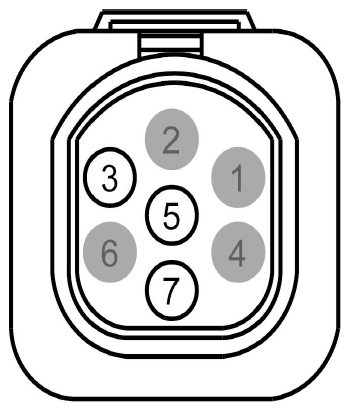

Fig 1: Identifying Exterior Door Handle, Right Rear Connector (C831)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	CPK18 (BN-BU)	22	SWITCH - LATCH CLUTCH REAR RIGHT SIDE
4	*	*	Not Used
5	CPK26 (BN-YE)	22	SWITCH - HANDLE UNLOCK REAR RIGHT SIDE
6	*	*	Not Used
7	GD152 (BK-BU)	22	GROUND - PILLAR D RIGHT # 2ND POINT (6L2T)
