Door Latch, Right Rear Connector End View (C805)

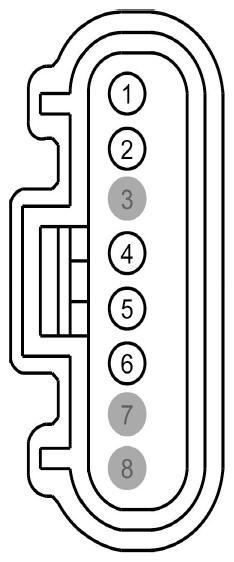

Fig 1: Identifying Door Latch, Right Rear Connector (C805)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPL76 (BN-YE)	14	CTRL MOD. - DOOR LOCK # REAR PASSENGER SIDE UNLOCK (INCL.SLIDING DOOR)	without door module
1	CPL54 (GY-BU)	20	CTRL MOD. - DOOR LOCK # REAR PASSENGER SIDE UNLOCK (INCL.SLIDING D.)	with door module
2	CPL75 (BN-WH)	14	CTRL MOD. - DOOR LOCK # ALL LOCK	without door module
2	CPL05 (GN-BU)	20	CTRL MOD. - DOOR LOCK # ALL LOCK	with door module
3	*	*	Not Used
4	GD145 (BK-BU)	20	GROUND - PILLAR B RIGHT (6L2T)	without door module
4	RPW09 (BN-WH)	22	CTRL MOD. - DOOR LOCK # LATCH REAR PASSENGER SIDE	with door module
5	CPL41 (GN-BU)	22	SWITCH - LATCH REAR PASSENGER SIDE # UNLOCK	without door module
6	CPL39 (YE)	22	SWITCH - LATCH REAR PASSENGER SIDE # AJAR (INCL.SLIDING DOOR)
7	*	*	Not Used
8	*	*	Not Used
