Auxiliary Park Lamp, Right Front Connector End View (C1446)

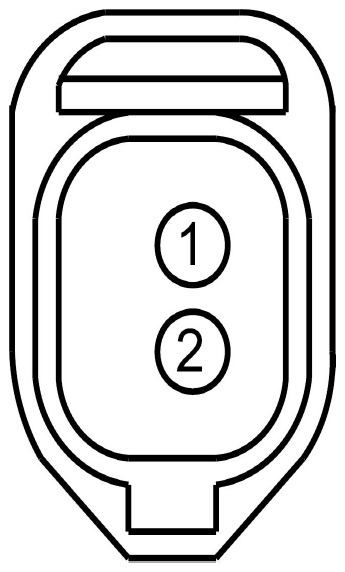

Fig 1: Identifying Auxiliary Park Lamp, Right Front Connector (C1446)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLS07 (BN-YE)	20	CTRL MOD. - PARK FRONT RIGHT
2	GD132 (BK-VT)	20	GROUND - HEADLAMP PANEL/GOR LEFT # 2ND POINT

Available Pigtail Kits

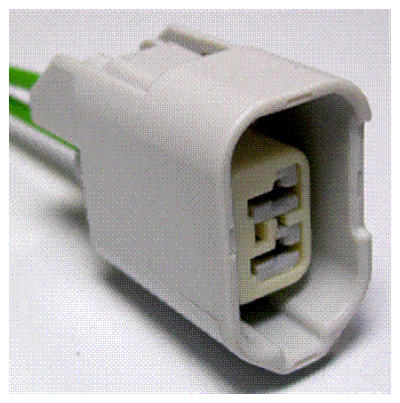

Pigtail Kit Part Number WPT-1204	Service Part Number: 1U2Z-14S411-BEB  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Lamp - Fog/Driving Lamp - Front Park Lamp - Front Turn Lamp - Front Turn/Marker Lamp - License Lamp - Reverse Lamp - Running Board Lamp - Side Marker Lamp - Stop/Park Lamp - Under Hood

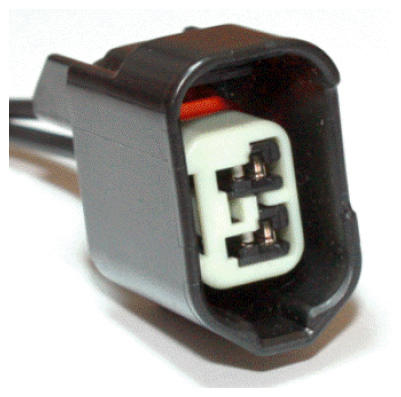

Pigtail Kit Part Number WPT-150	Service Part Number: 1U2Z-14S411-BEA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Lamp - Fog/Driving Lamp - Front Park Lamp - Front Turn/Marker Lamp - License Lamp - Reverse Lamp - Running Board Lamp - Side Marker Lamp - Stop/Park Lamp - Under Hood
