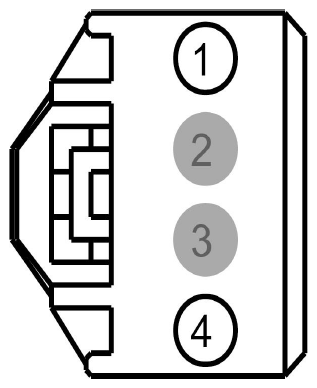

Speaker, Right Front Connector End View (C612)

Fig 1: Identifying Speaker, Right Front Connector (C612)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME10 (WH-VT)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) +
2	*	*	Not Used
3	*	*	Not Used
4	RME10 (WH-OG)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) -

Available Pigtail Kits
Pigtail Kit Part Number WPT-912	Service Part Number: 8U2Z-14S411-HA  Gauge: 14  Pin material: Tin  Cavities: 4  Vehicle Uses Sensor - Oil Temperature Sensor - Power Steering Pressure Sensor - Purge Flow Switch - Gear Shift Select/Neutral Safety
