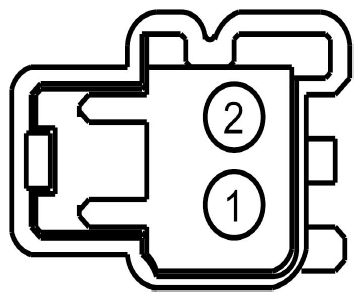

Seat Backrest Heater, Left Front Connector End View (C365)

Fig 1: Identifying Seat Backrest Heater, Left Front Connector (C365)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS01 (GY-VT)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER +
2	RHS01 (WH-VT)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER -

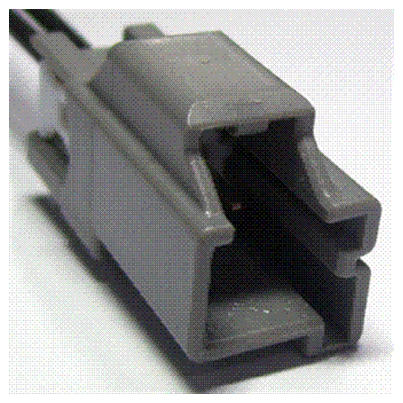

Available Pigtail Kits
Pigtail Kit Part Number WPT-1078	Service Part Number: 3U2Z-14S411-LAB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Connector - Inline Element - Heated Seat Lamp - PRNDL Indicator Speaker - Front Switch - Seat Lumbar
