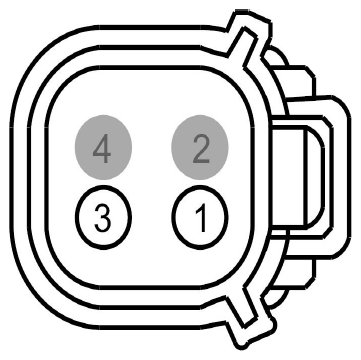

Reversing Lamp, Right Connector End View (C461)

Fig 1: Identifying Reversing Lamp, Right Connector (C461)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD150 (BK-WH)	20	GROUND - PILLAR D LEFT # 2ND POINT (6L2T)
2	*	*	Not Used
3	CLS45 (GN-BN)	20	CTRL MOD. - REVERSING LAMP REAR (RIGHT) +
4	*	*	Not Used

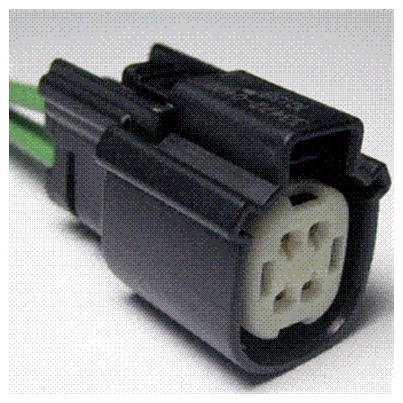

Available Pigtail Kits
Pigtail Kit Part Number WPT-1171	Service Part Number: BU2Z-14S411-TA  Gauge: 16  Pin material: Silver  Cavities: 4  Vehicle Uses Lamp - Headlamp - High/Low Beam
