Rear Window Wiper Motor Connector End View (C476)

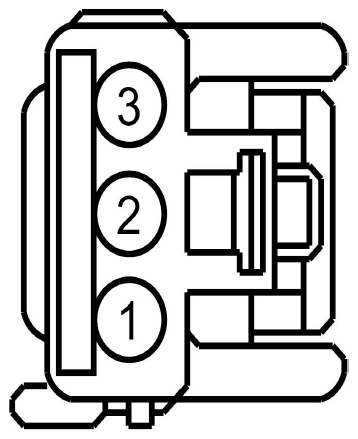

Fig 1: Identifying Rear Window Wiper Motor Connector (C476)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB42 (GN)	16	FUSE OR CIRCUIT BREAKER
2	CRW02 (GY-BU)	20	CTRL MOD. - REAR WIPER
3	GD150 (BK-WH)	16	GROUND - PILLAR D LEFT # 2ND POINT (6L2T)

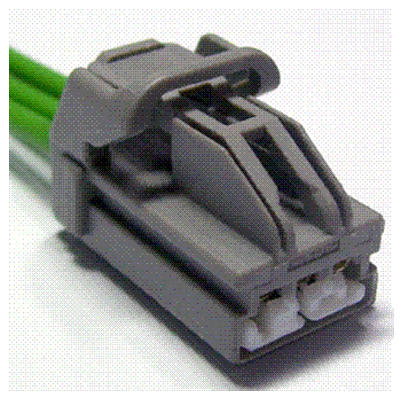

Available Pigtail Kits
Pigtail Kit Part Number WPT-1147	Service Part Number: 3U2Z-14S411-BHAB  Gauge: 16  Pin material: Silver  Cavities: 3  Vehicle Uses Motor - Rear Window Wiper Motor - Seat Recline Refrigerator
