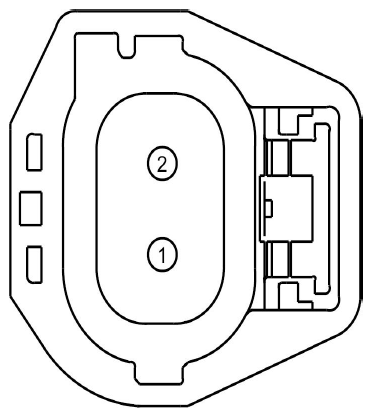

Power Window Motor, Passenger Side Connector End View (C608)

Fig 1: Identifying Power Window Motor, Passenger Side Connector (C608)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW20 (WH)	12	SWITCH - POWER WINDOW FRONT RIGHT # UP
2	CPW19 (VT-RD)	12	SWITCH - POWER WINDOW FRONT RIGHT # DOWN

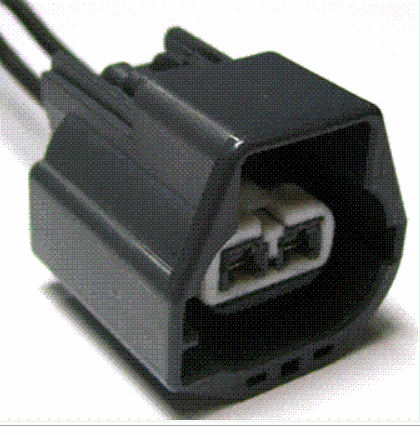

Available Pigtail Kits
Pigtail Kit Part Number WPT-1336	Service Part Number: DU2Z-14S411-KA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Motor - Fuel Filler Door Motor - Power Window - LH - Rear Motor - Power Window - RH - Rear
