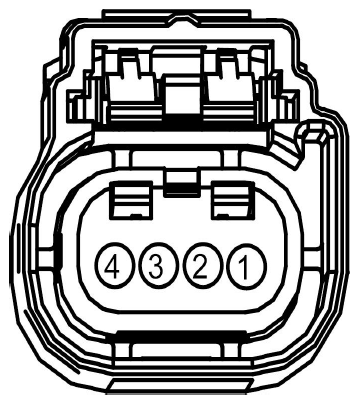

Passive Start Antenna, Center Connector End View (C326)

Fig 1: Identifying Passive Start Antenna, Center Connector (C326)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RPK06 (GN-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) -
2	VPK06 (GY-VT)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) +
3	*	*	Not Used
4	*	*	Not Used

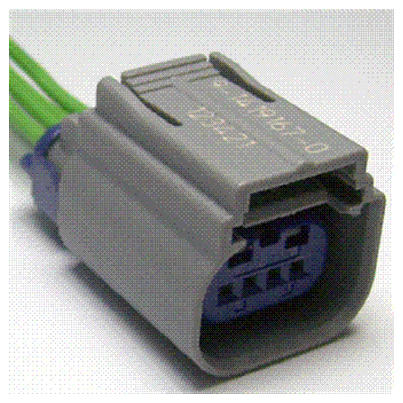

Available Pigtail Kits
Pigtail Kit Part Number WPT-1328	Service Part Number: DU2Z-14S411-AA  Gauge: 20  Pin material: Silver  Cavities: 4  Vehicle Uses Antenna - Keyless Entry Lamp - Charge Port
