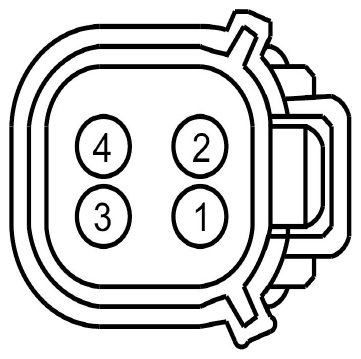

Park/Stop/Turn Lamp, Right Rear Connector End View (C415)

Fig 1: Identifying Park/Stop/Turn Lamp, Right Rear Connector (C415)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD150 (BK-WH)	18	GROUND - PILLAR D LEFT # 2ND POINT (6L2T)
2	CLS45 (VT-GN)	20	CTRL MOD. - PARK LAMP LEFT REAR
3	CLS45 (VT-GN)	20	CTRL MOD. - STOP LAMP LEFT REAR
4	CLS27 (GNOG)	18	CTRL MOD. - TURN LAMP RIGHT REAR

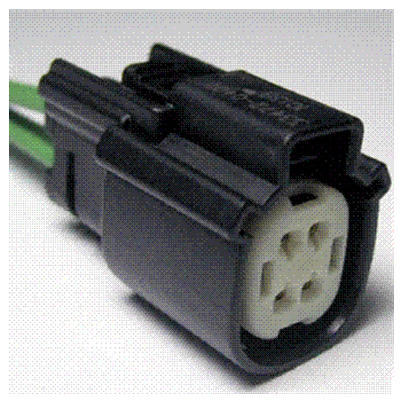

Available Pigtail Kits
Pigtail Kit Part Number WPT-1171	Service Part Number: BU2Z-14S411-TA  Gauge: 16  Pin material: Silver  Cavities: 4  Vehicle Uses Lamp - Headlamp - High/Low Beam
