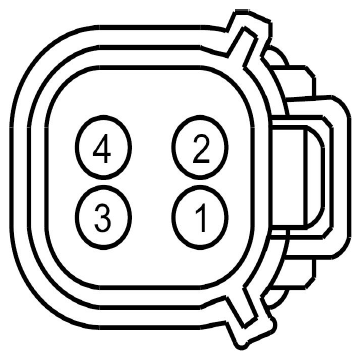

Park/Stop/Turn Lamp, Left Rear Connector End View (C412)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD150 (BK-WH) | 18 | GROUND - PILLAR D LEFT # 2ND POINT (6L2T) | |
| 2 | CLS45 (VT-GN) | 20 | CTRL MOD. - PARK LAMP LEFT REAR | |
| 3 | CLS44 (VT-BN) | 18 | CTRL MOD. - STOP LAMP LEFT REAR | with trailer tow |
| 3 | CLS45 (VT-GN) | 20 | CTRL MOD. - STOP LAMP LEFT REAR | w/o trailer tow |
| 4 | CLS23 (GY-OG) | 18 | CTRL MOD. - TURN LAMP LEFT REAR |

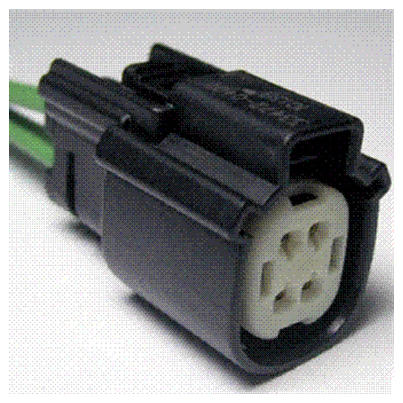

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1171 | Service Part Number: BU2Z-14S411-TA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses
|
