License Plate Lamp, Left Connector End View (C452)

Fig 1: Identifying License Plate Lamp, Left Connector (C452)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLS04 (*)	*	FUSE OR CIRCUIT BREAKER
2	GD150 (*)	*	GROUND - PILLAR D LEFT

Available Pigtail Kits

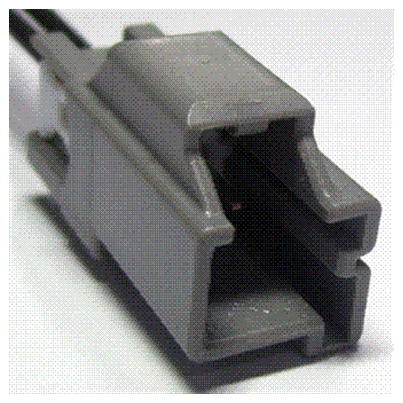

Pigtail Kit Part Number WPT-1078	Service Part Number: 3U2Z-14S411-LAB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Connector - Inline Element - Heated Seat Lamp - PRNDL Indicator Speaker - Front Switch - Seat Lumbar

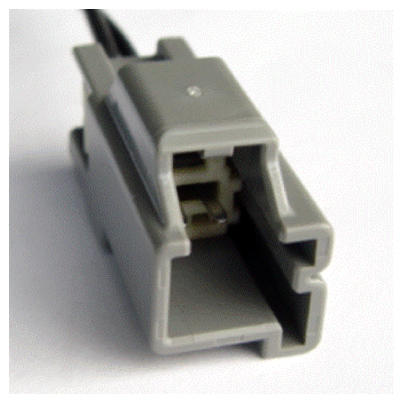

Pigtail Kit Part Number WPT-422	Service Part Number: 3U2Z-14S411-LAA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Element - Heated Seat Lamp - PRNDL Indicator Switch - Seat Lumbar
